SKU: YSP207SB-2F-SKF

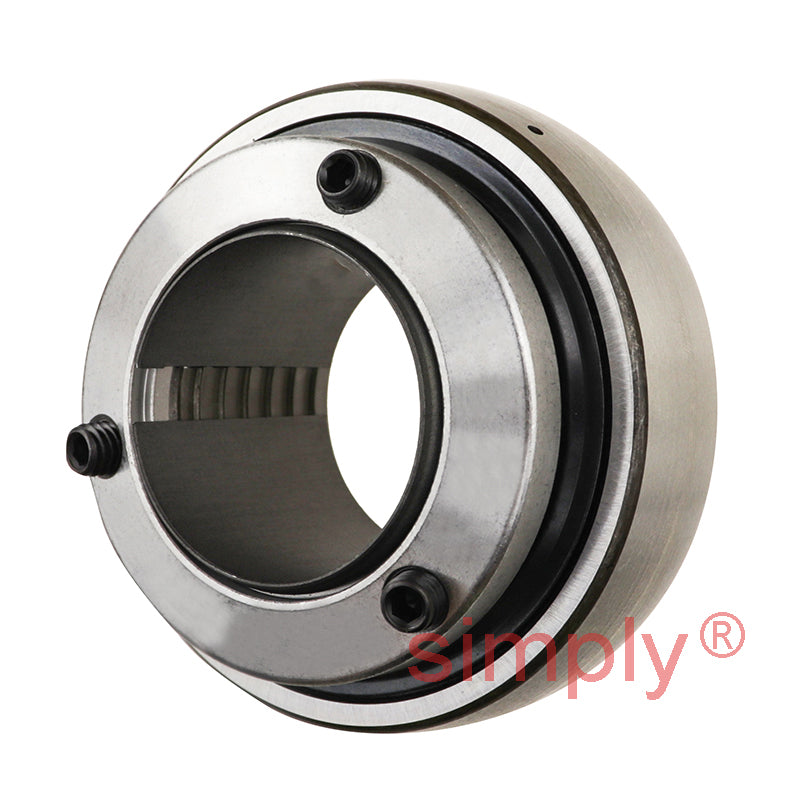

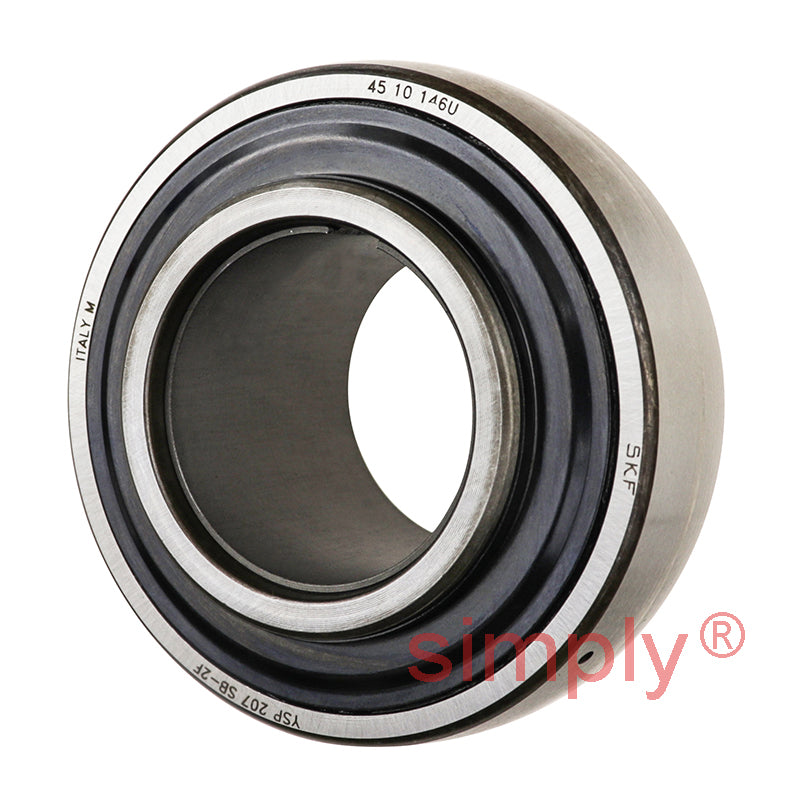

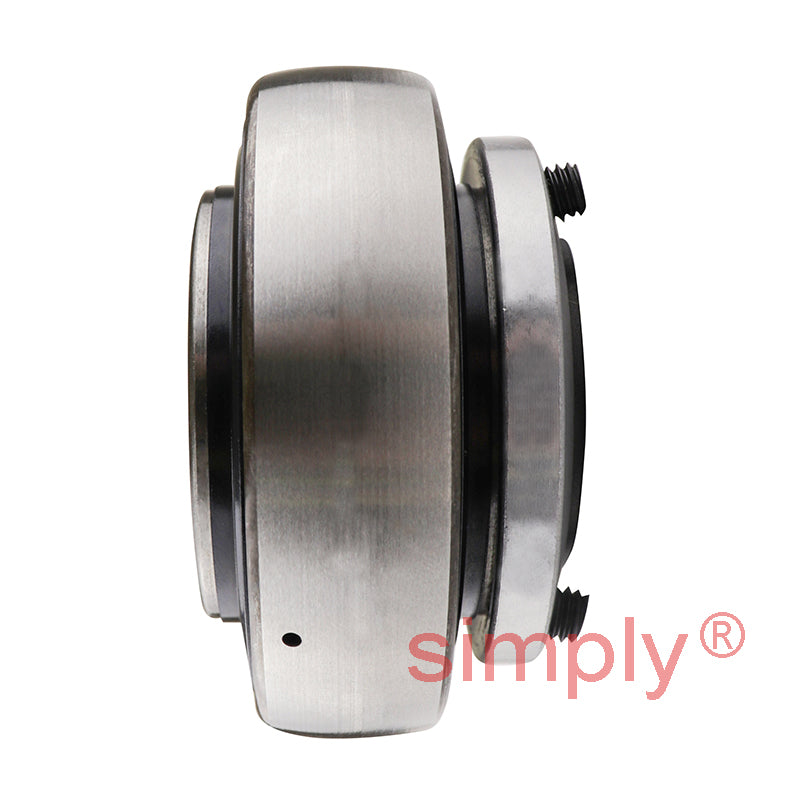

SKF YSP207SB2F Bearing Insert with ConCentra Locking 35x72x39.7mm
SKF YSP207SB2F Bearing Insert with ConCentra Locking 35x72x39.7mm
Regular price
€62,95
ex VAT
Regular price
Sale price
€62,95
ex VAT
In stock
Price Break
10+
€47,18
19+
€44,53
29+
€44,00
39+
€43,47
49+
€42,94
74+
€42,41
99+
€39,76
199+
€39,23
249+
€38,70
499+
€38,17
999+
€37,11
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Bearing Inserts with ConCentra Locking These insert bearings were inspired by sealed deep groove ball bearings. Typically used in applications where there is a constant or if there are alternating directions of rotation, heavy loads and/or high speeds. This insert has an inner ring extended on both sides and also benefits from SKF ConCentra locking which enables quick and easy mounting onto a shaft.
Benefits: Accommodate static initial misalignment, quick and easy to mount onto the shaft, reduce noise and vibration levels, long service life.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 39.7mm
Technical
Technical

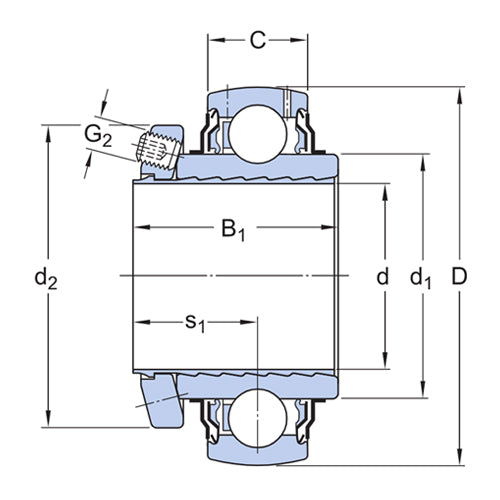

| d | 35mm |
|---|---|
| D | 72mm |
| B1 | 39.7mm |
| C | 19mm |
| d1 | 46.1mm |
| d2 | 57mm |
| s1 | 24.5mm |
| Basic Dynamic Load Rating C | 25.5 kN |
| Basic Static Load Rating C0 | 15.3 kN |
| Fatigue Load Limit Pu | 0.655 kN |
| Limiting Speed | 5300 r/min |
| Calculation Factor | 14 |
| Weight | 0.450 kg |
