SKU: YSA213-2FK-SKF

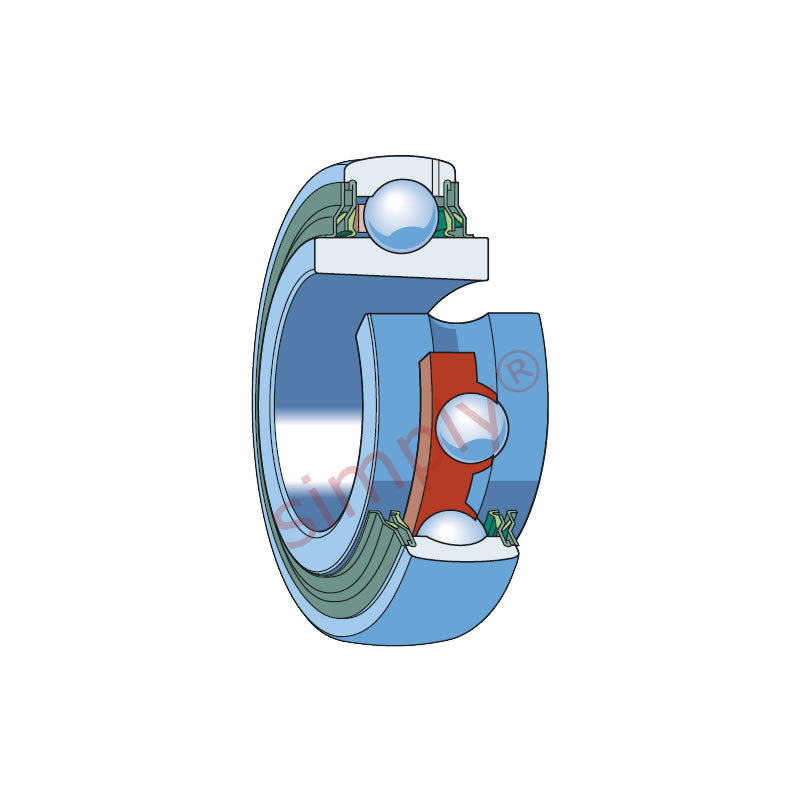

SKF YSA213-2FK Tapered Bore Bearing Insert 60 mm Bore (without Adaptor Sleeve) 120mm Outside Diameter
SKF YSA213-2FK Tapered Bore Bearing Insert 60 mm Bore (without Adaptor Sleeve) 120mm Outside Diameter
Regular price
€107,95
ex VAT
Regular price
Sale price
€107,95
ex VAT
In stock
Price Break
10+
€81,57
20+
€76,99
30+
€76,07
40+
€75,16
50+
€74,24
75+
€73,32
100+
€68,74
200+
€67,82
250+
€66,91
500+
€65,99
1000+
€64,16
Quantity
Couldn't load pickup availability
Description
Description
|
SKF YSA-2-2FK Y-bearings with a Tapered Bore: These bearings have a symmetrically extended inner ring on both sides and a tapered bore (taper 1:12) enabling them to be mounted on a standard adapter sleeve in the H-23 series. These bearings are equipped with the rugged standard integral seal, fitted with additional plain sheet steel flingers. The outer ring has two lubrication holes as standard. Mounting onto an adapter sleeve enables the bearings to opeate at higher speeds and run more smoothly in applications where the direction of rotation is constant or alternating. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 120mm
- Style:
- YSA
Technical
Technical
| d | 60mm |
|---|---|
| D | 120mm |
| B | 43.5mm |
| B1 | 65mm |
| C | 27mm |
| s1 | 35.8mm |
| Static load Cr | 40 kN |
| Dynamic load Cor | 57.2 kN |
| Fatigue load limit Pu | 1.7 kN |
| Limiting speed | 3000 rpm |
| Weight | 1.7 kg |
| Required Sleeve | H2313 |
