SKU: YHC209-108-2LS8W/VT357-SKF

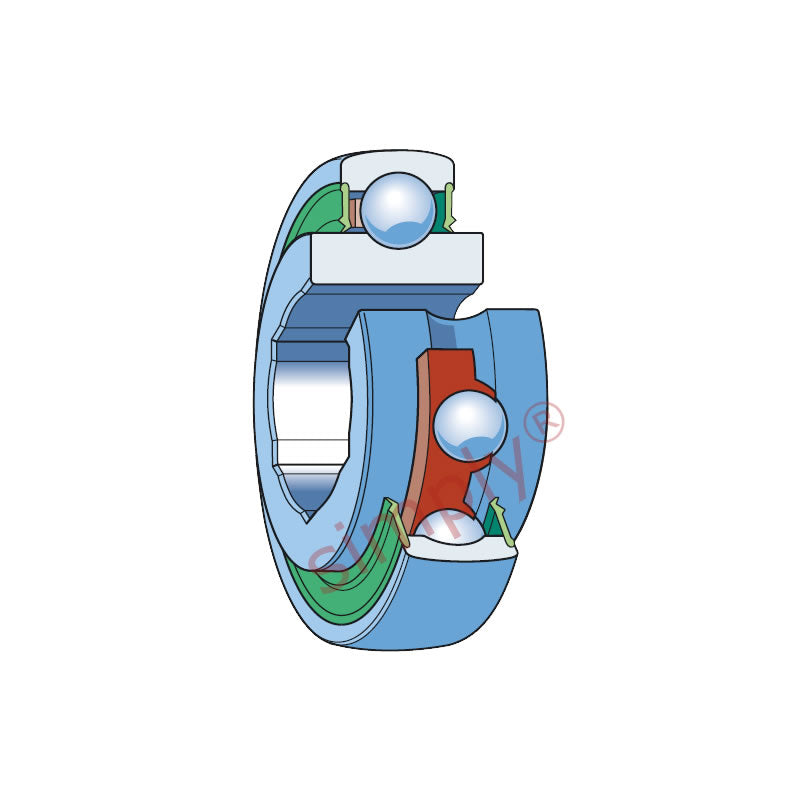

SKF YHC209-108-2LS8W/VT357 Hexagonal Bore Bearing Insert 1-1/2 Inch Bore
SKF YHC209-108-2LS8W/VT357 Hexagonal Bore Bearing Insert 1-1/2 Inch Bore
Out of stock
Description
Description
|
SKF YHC Y-bearings with a Hexagonal or Square Bore: These bearings are intended primarily for high torque applications. The bore is produced to a plus tolerance and enables easy mounting and dismounting. These bearings should be axially located on the shaft using adjacent components. The bearings have a standard outer ring without lubrication holes. They are equipped with rugged contact seals. Benefits: Easy mounting and dismounting, suitable for high torque applications |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 85mm
- Width:
- 30mm
- Seals / Shields:
- Rubber Sealed
- Style:
- YHC

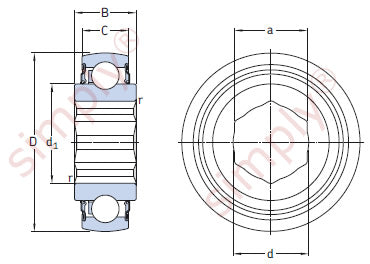

Technical
Technical
| a | 1-1/2 inch |
|---|---|
| d | 39mm |
| D | 85mm |
| B | 30mm |
| C | 22mm |
| d1 | 56.8mm |
| r | 0.4mm |
| Static Load Cr | 21.6 kN |
| Dynamic Load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 500 rpm |
| Weight | 0.58 kg |
