SKU: YAT215-215-SKF

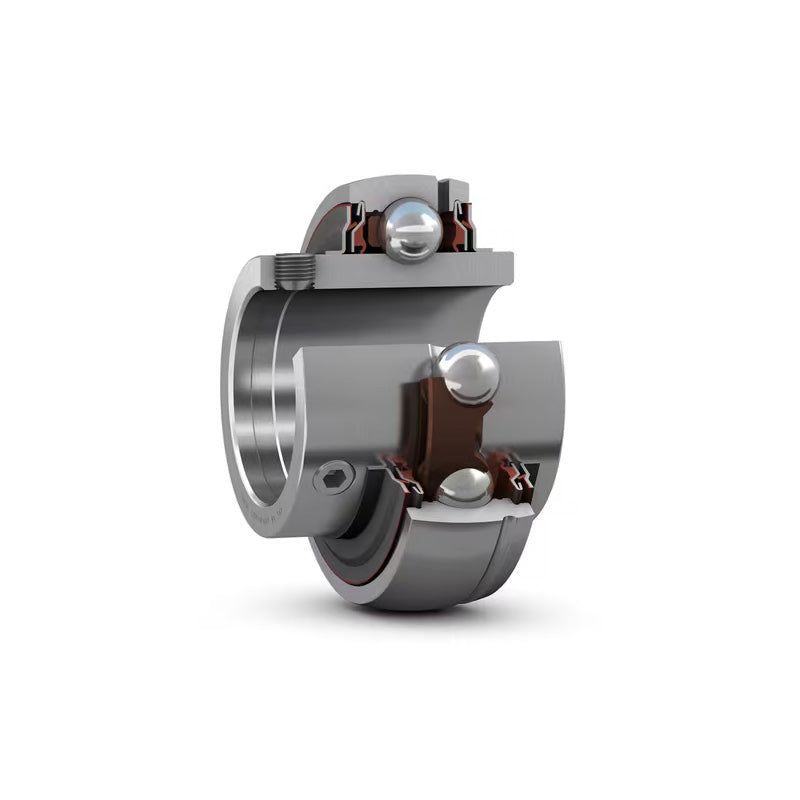

SKF YAT215-215 Grub Screw Type Bearing Insert 2-15/16 inch Bore 130mm Outside Diameter
SKF YAT215-215 Grub Screw Type Bearing Insert 2-15/16 inch Bore 130mm Outside Diameter
Out of stock
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
- Outside Diameter:
- 130mm
- Style:
- YAT
Technical
Technical
| d | 2-15/16 inch |
|---|---|
| D | 130mm |
| B | 53.5mm |
| C | 29mm |
| d1 | 92mm |
| s1 | 39mm |
| r1r2 min | 1.5mm |
| Static load Cr | 49 kN |
| Dynamic load Cor | 66.3 kN |
| Fatigue load limit Pu | 2.04 kN |
| Limiting speed | 2600 rpm |
| Weight | 2.1 kg |
