SKU: YAT212-204-SKF

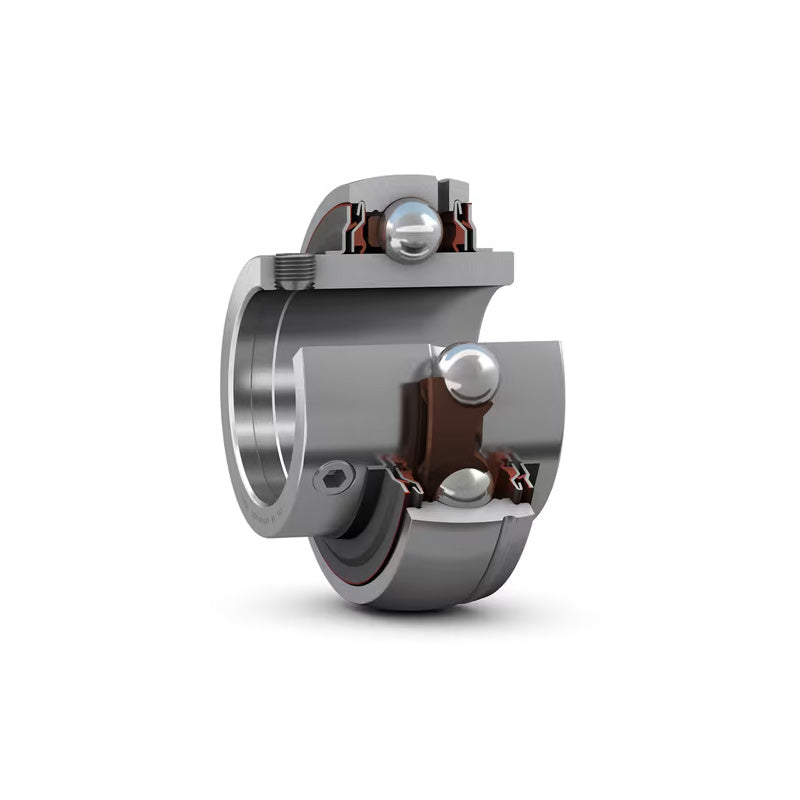

SKF YAT212-204 Grub Screw Type Bearing Insert 2-1/4 inch Bore 110mm Outside Diameter
SKF YAT212-204 Grub Screw Type Bearing Insert 2-1/4 inch Bore 110mm Outside Diameter
Out of stock
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Outside Diameter:
- 110mm
- Style:
- YAT
Technical
Technical
| d | 2-1/4 inch |
|---|---|
| D | 110mm |
| B | 48.5mm |
| C | 26mm |
| d1 | 75.6mm |
| s1 | 35mm |
| r1r2 min | 1.5mm |
| Static load Cr | 36 kN |
| Dynamic load Cor | 52.7 kN |
| Fatigue load limit Pu | 1.53 kN |
| Limiting speed | 3400 rpm |
| Weight | 1.25 kg |
