SKU: YAR207-104-2FW/VA201-SKF

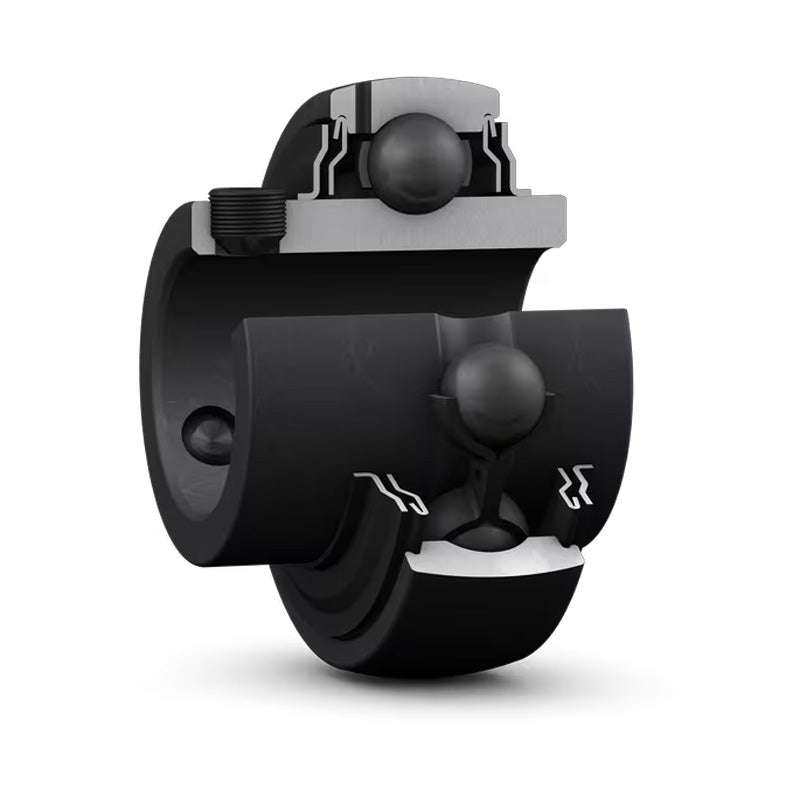

SKF YAR2071042FWVA201 Y Bearing Insert for High Temperature Application with Pressed Steel Cage and Grub Screw Location 1-1/4 inch shaft
SKF YAR2071042FWVA201 Y Bearing Insert for High Temperature Application with Pressed Steel Cage and Grub Screw Location 1-1/4 inch shaft
Out of stock
Share this product
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| D | 72mm |
| B | 42.9mm |
| C | 19mm |
| d1 | 46.1mm |
| s1 | 25.4mm |
| r1r2 min | 1mm |
| Dynamic load C | 25.5 kN |
| Static load Co | 15.3 kN |
| Weight | 0.52 kg |
