• Timken XGA32021X/Y32021X IsoClass Metric 30000 Taper Roller Bearing 106x160x35mm
1 1

SKU: Y32021X-TIM

Timken XGA32021X/Y32021X IsoClass Metric 30000 Taper Roller Bearing 106x160x35mm

Timken XGA32021X/Y32021X IsoClass Metric 30000 Taper Roller Bearing 106x160x35mm
€1.912,95 ex VAT
€1.912,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €1.453,30
20+ €1.371,65
30+ €1.355,32
40+ €1.339,00
50+ €1.322,67
75+ €1.306,34
100+ €1.224,69
200+ €1.208,36
250+ €1.192,03
500+ €1.175,70
1000+ €1.143,05

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
106mm
Outside Diameter:
160mm
Width:
35mm

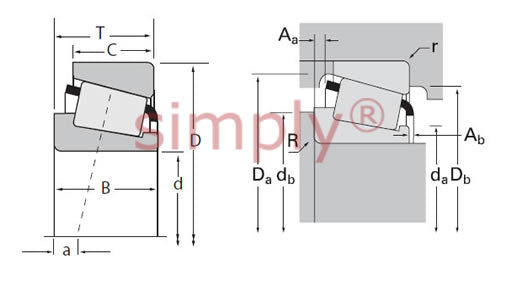

Technical
d 106mm
D 160mm
T 35mm
Dynamic (1) C1 210000N
Factors (5) e 0.44
Factors (5) Y 1.35
Dynamic (2) C90 54500N
Dynamic (2) Ca90 41500N
Factors (5) K 1.31
Static Co 339000N
Bearing B 35mm
Bearing C 26mm
Bearing a(3) -0.3mm
Shaft max shaft fillet radius R(4) 6mm
Shaft backing shoulder diameter da 115mm
Shaft backing shoulder diameter db 128mm
Housing backing shoulder diameter r(4) 2mm
Housing backing shoulder diameter Da 154mm
Housing backing shoulder diameter Db 147mm
Cage Aa 3.2mm
Cage Ab 2.6mm
G1 176
G2 50.7
Cg 0.1024
