SKU: WMOF-1622-20

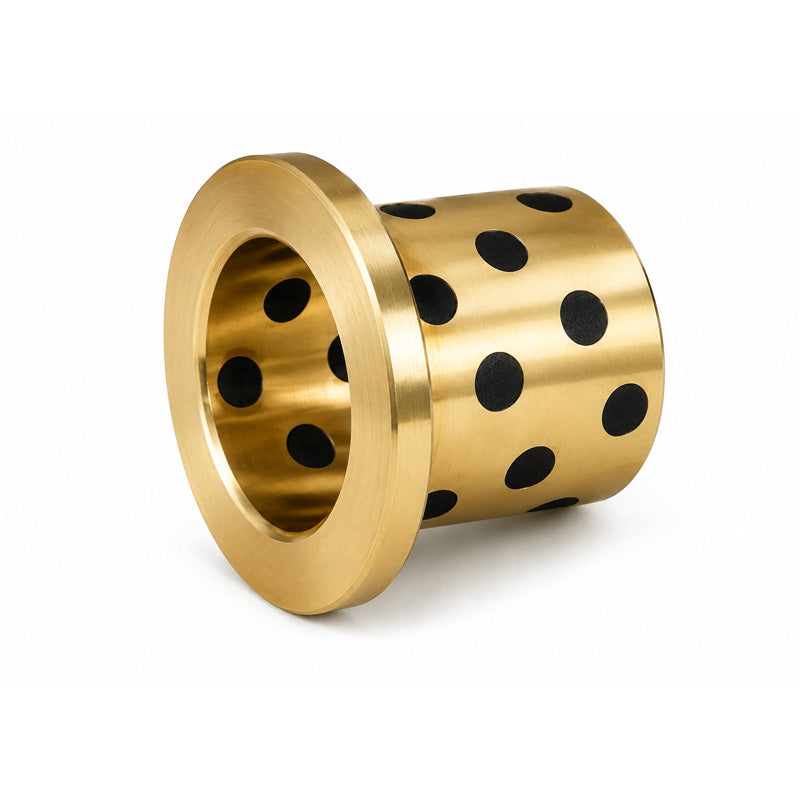

WMOF162220 Flanged Oilless Bronze Bush 16x22x20mm

WMOF162220 Flanged Oilless Bronze Bush 16x22x20mm

Equivalent to: WMOF162220

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d 16mm
D 22mm
L 20mm
F 29mm
L1 3mm
PV 3.3 max (N/mm? x m/s)
Static load 100 max (N/mm?)
Sliding speed 0.3 max (m/s)
Operating temperature Up to 300 (?C)
Coefficient of thermal expansion 19 x 10-5/?C
Coefficient of friction 0.16
Hardness 210 min (HB)
Tensile strength 750 min (N/mm?)
Elongation 12 min (%)
Density 8 (g/cm?)
Max rpm 298.416 rpm
Max load 3261.978 kg
Housing Tolerance H7
