SKU: WLT25-00-500-DURB

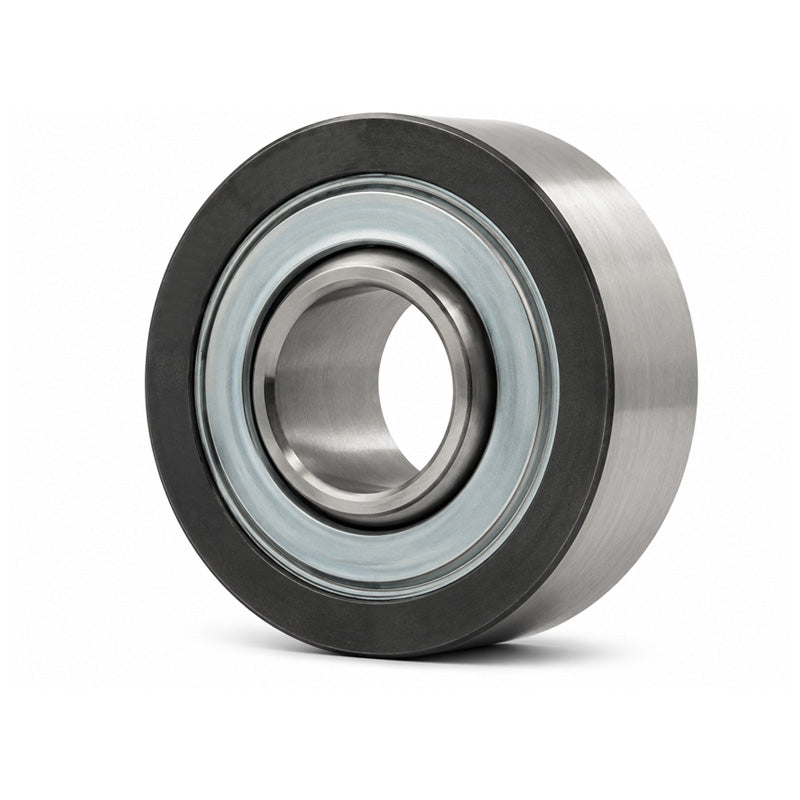

Durbal WLT25-00-500 Steel Spherical Plain Bearing with Cage 25x64x31mm
Durbal WLT25-00-500 Steel Spherical Plain Bearing with Cage 25x64x31mm
Out of stock
Share this product
Description
Description
DURBAL Heavy-Duty Caged Spherical Bearings with Integral Self-Aligning Roller Bearing: These spherical bearings are made from hardened and super finished steel. For high speeds, wide swivelling angles or rotating movements. Suitable for high loads. Low maintenance due to long-term lubrication with food-grade approval. Covering discs on both sides to prevent the penetration of coarse dirt particles inside the bearing. Temperature range: -45 deg C to +120 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 25mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 64mm |
| B | 31mm |
| C | 22mm |
| d1 | 30.1mm |
| tilt angle α | 5 deg |
| weight | 0.34kg |
| rotational speed limit n max | 600 min-1 |
| basic load rating dyn C | 24.9 kN |
| basic load rating stat Co | 18.5 kN |
| radial clearance CN | 10-30 µm |
