SKU: WLT10-90-500-DURB

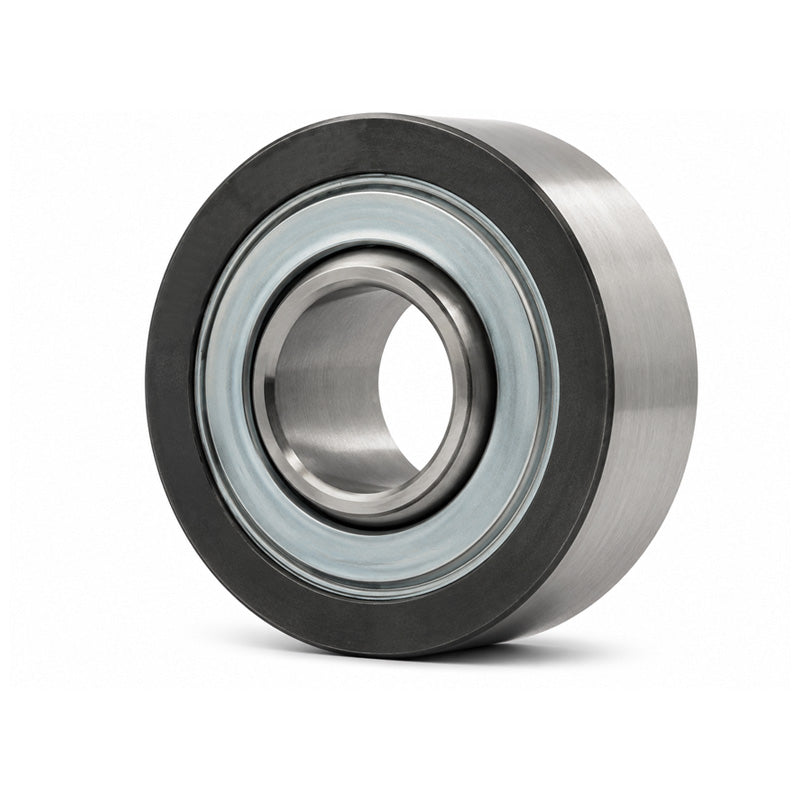

Durbal WLT10-90-500 Stainless Steel Full Complement Spherical Plain Bearing 10x28x14mm
Durbal WLT10-90-500 Stainless Steel Full Complement Spherical Plain Bearing 10x28x14mm
Out of stock
Share this product
Description
Description
DURBAL Heavy-Duty Full Complement Stainless Steel Spherical Bearings with Integral Self-Aligning Roller Bearing: These spherical bearings are made from hardened and super finished stainless steel. For high speeds, wide swivelling angles or rotating movements. Suitable for high loads. In contrast to the cage design, the full complement design is suitable for higher loads but with a lower speed threshold. Low maintenance due to long-term lubrication with food-grade approval. Covering discs in stainless steel on both sides to prevent the penetration of coarse dirt particles inside the bearing. Temperature range: -45 deg C to +120 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 10mm
Technical
Technical
| d | 10mm |
|---|---|
| D | 28mm |
| B | 14mm |
| C | 10.5mm |
| d1 | 12.7mm |
| tilt angle α | 8 deg |
| weight | 0.04kg |
| rotational speed limit n max | 820 min-1 |
| basic load rating dyn C | 7.98 kN |
| basic load rating stat Co | 4.55 kN |
| radial clearance CN | 10-30 µm |
