SKU: WLK08-60-500-DURB

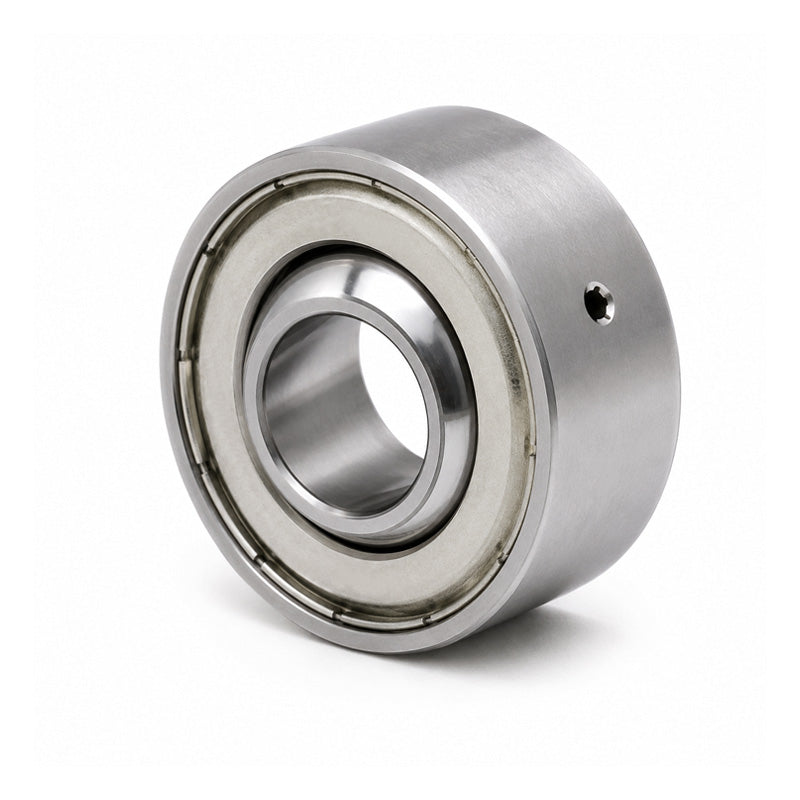

Durbal WLK08-60-500 Stainless Steel Spherical Plain Bearing 8x24x12mm
Durbal WLK08-60-500 Stainless Steel Spherical Plain Bearing 8x24x12mm
Out of stock
Share this product
Description
Description
DURBAL Heavy-Duty Stainless Steel Spherical Bearings with Integral Self-Aligning Ball Bearing: These spherical bearings are made from hardened and super-finished stainless steel. For high speeds, wide swivelling angles or rotating movements. These bearings have low bearing friction. Low maintenance due to long-term lubrication with food-grade approval. Covering discs in stainless steel on both sides to prevent the penetration of coarse dirt particles inside the bearing. Temperature range: -45 deg C to +120 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 8mm
Technical
Technical
| d | 8mm |
|---|---|
| D | 24mm |
| B | 12mm |
| C | 9mm |
| d1 | 10.4mm |
| tilt angle α | 8.5 deg |
| weight | 0.03kg |
| rotational speed limit n max | 1.3 min-1 |
| Axial Factor Y | 1.8 Y0 |
| Axial Factor Y0 | 1.89 Y0 |
| basic load rating dyn C | 2.8 kN |
| basic load rating stat Co | 0.7 kN |
| radial clearance CN | 10-30 µm |
