SKU: W211PP5.EU

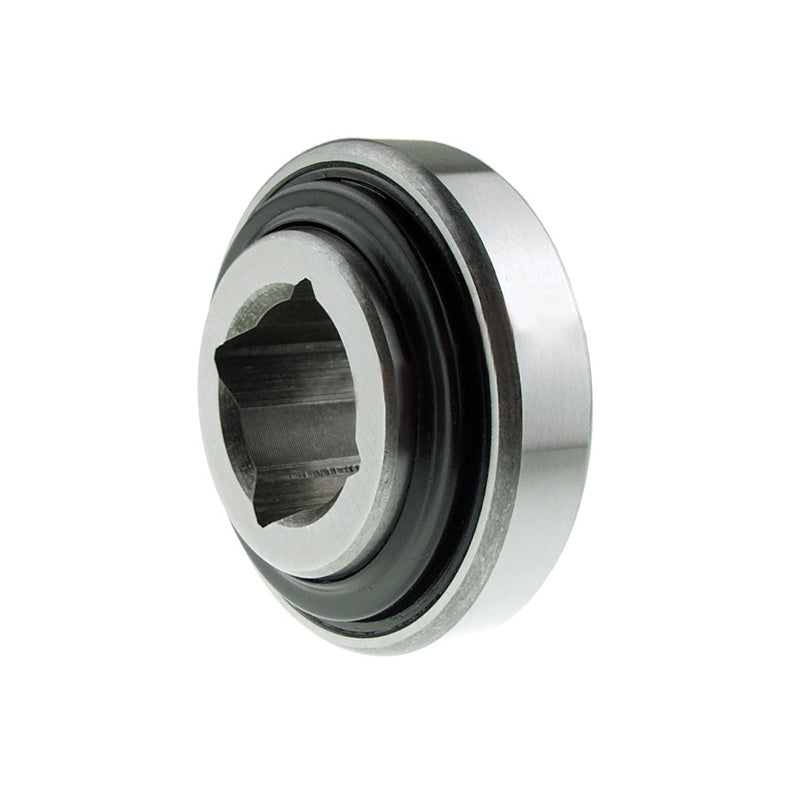

W211PP5 1.53 inch Square Bore Parallel Outer Disc Harrow Bearing 1.53x4x1.75 inch
W211PP5 1.53 inch Square Bore Parallel Outer Disc Harrow Bearing 1.53x4x1.75 inch
Out of stock
Description
Description
|
Square Bore Disc Harrow Bearings: Designed primarily for use in agricultural applications these ruggedly constructed ball bearings have a parallel outer raceway and a square bore, the inner race extends wider than the outer raceway. Benefits: Designed specifically for agricultural use |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.89mm = 1.531 (1-17/32) inch
- Outside Diameter:
- 101.6mm = 4 inch
- Width:
- 44.45mm = 1.75 (1-3/4) inch

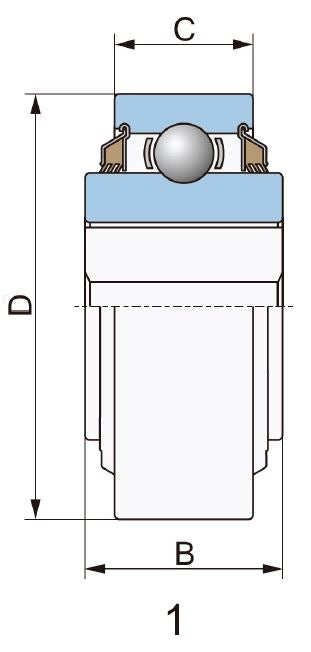

Technical
Technical
| Square Bore | 38.89mm = 1.53 inch |
|---|---|
| D | 101.6mm = 4 inch |
| B | 44.45mm = 1.75 inch |
| C | 1.438 inch = 36.52mm |
