SKU: USPG210-SNR

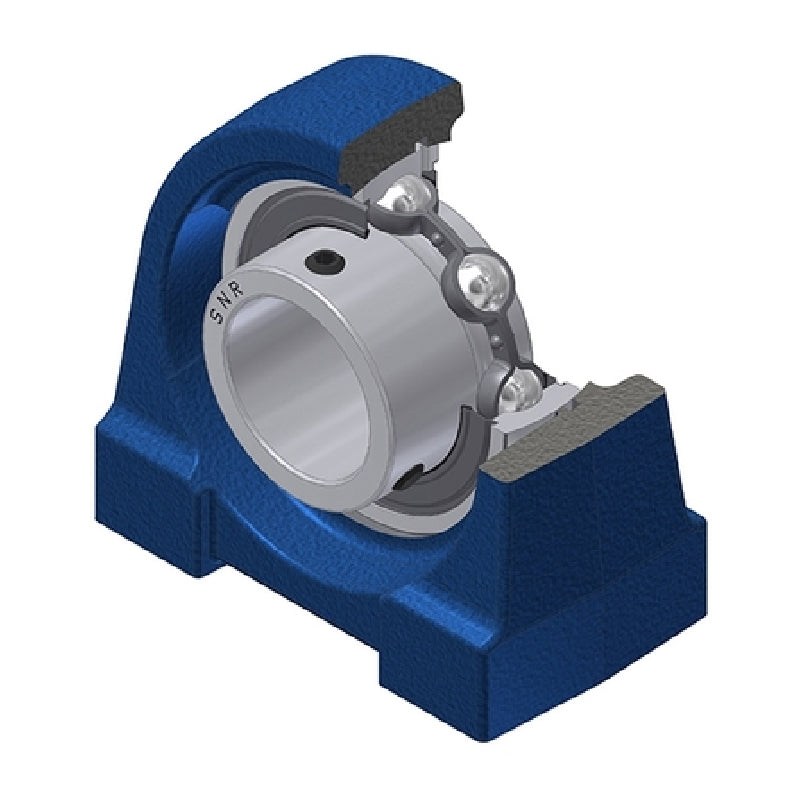

SNR USPG210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 50mm Bore Insert
SNR USPG210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 50mm Bore Insert
Regular price
€51,95
ex VAT
Regular price
Sale price
€51,95
ex VAT
In stock
Price Break
3+
€39,46
4+
€37,25
9+
€36,80
19+
€36,36
49+
€35,91
99+
€35,47
499+
€33,25
999+
€32,81
1999+
€32,37
2999+
€31,92
4999+
€31,04
Quantity
Couldn't load pickup availability
Description
Description
|
USPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- USPG
- Bolt Hole Centres:
- 95mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 60mm |
| A1 | 35mm |
| B | 43.5mm |
| E | 25mm |
| H | 57.2mm |
| H1 | 21mm |
| H2 | 114mm |
| J | 95mm |
| L | 135mm |
| L1 | 40mm |
| N | M16 |
| S | 10.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.76 kg |
