SKU: USFTE208-SNR

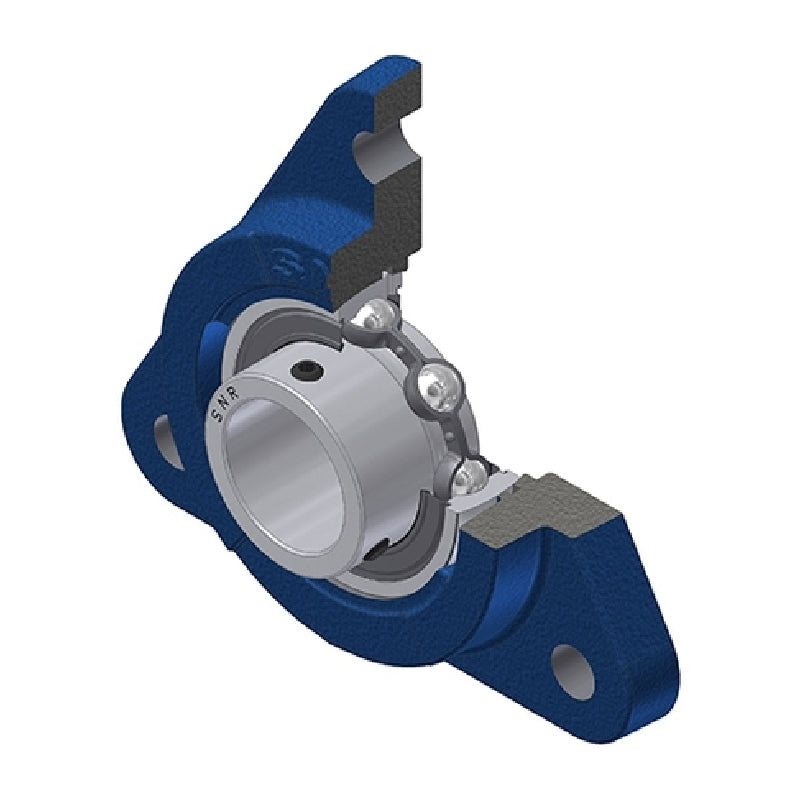

SNR USFTE208 Metric Three Bolt Cast Iron Triangular Housing with 40mm Bore Insert
SNR USFTE208 Metric Three Bolt Cast Iron Triangular Housing with 40mm Bore Insert
Regular price
€45,95
ex VAT
Regular price
Sale price
€45,95
ex VAT
In stock
Price Break
3+
€34,31
4+
€32,39
9+
€32,00
19+
€31,62
49+
€31,23
99+
€30,84
499+
€28,92
999+
€28,53
1999+
€28,15
2999+
€27,76
4999+
€26,99
Quantity
Couldn't load pickup availability
Share this product
Description
Description
USFTE200 Series 3 Bolt Cast Iron Triangular Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- USFTE
- Bolt Hole Centres:
- 140mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 30mm |
| A1 | 16mm |
| A2 | 43.8mm |
| B | 34mm |
| e | 18.8mm |
| H | 153mm |
| H1 | 51mm |
| J | 140mm |
| N | 13.5mm |
| S | 9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.29 kg |
