SKU: USFLZ206-SNR
SNR USFLZ206 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
SNR USFLZ206 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
Regular price
€35,95
ex VAT
Regular price
Sale price
€35,95
ex VAT
In stock
Price Break
3+
€27,17
4+
€25,64
9+
€25,34
19+
€25,03
49+
€24,73
99+
€24,42
499+
€22,90
999+
€22,59
1999+
€22,29
2999+
€21,98
4999+
€21,37
Quantity
Couldn't load pickup availability
Share this product
Description
Description

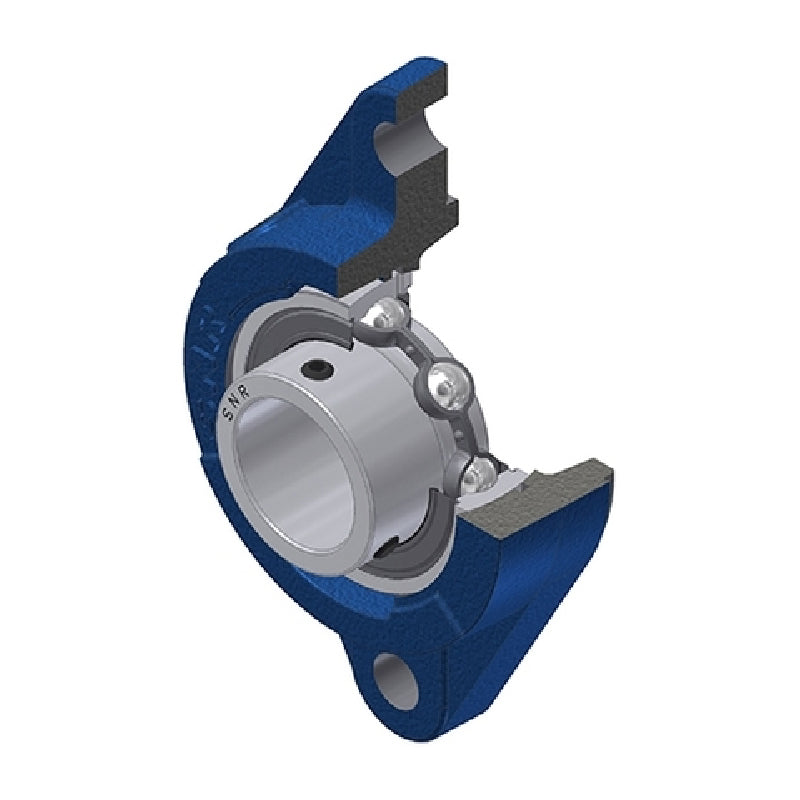

USFLZ200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- USFLZ
- Bolt Hole Centres:
- 116.5mm
Technical
Technical

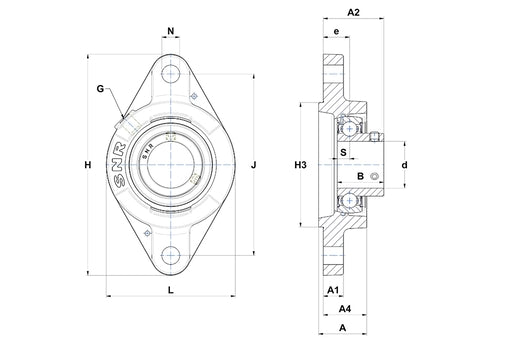

| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 30mm |
| A1 | 12mm |
| A2 | 39mm |
| A4 | 27mm |
| B | 30mm |
| e | 17mm |
| H | 142mm |
| H3 | 80mm |
| J | 116.5mm |
| L | 83mm |
| N | 11.5mm |
| S | 8mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.87 kg |
