SKU: USFCE212-SNR

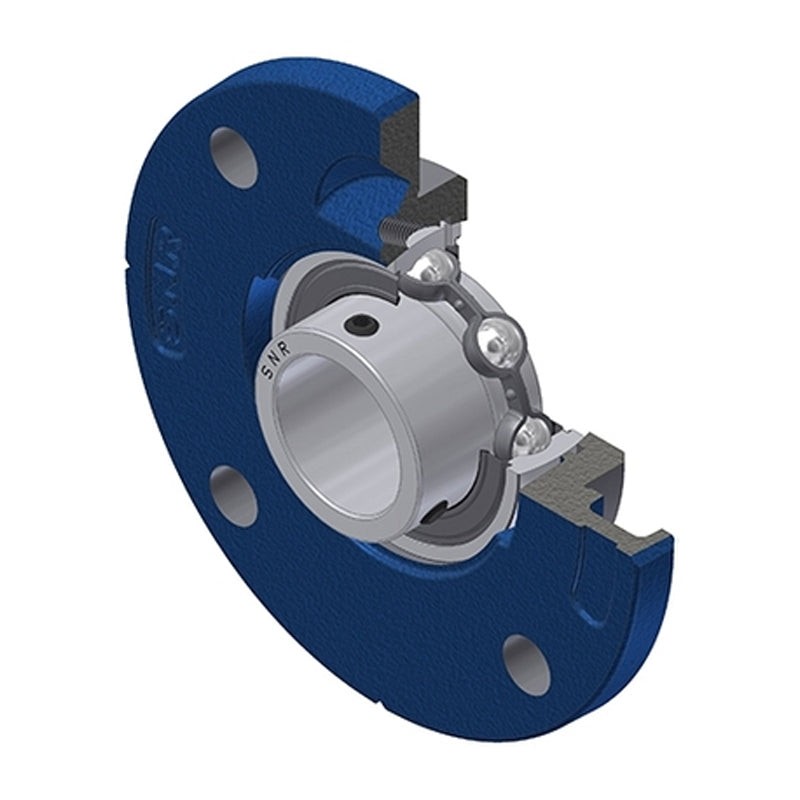

SNR USFCE212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert - Allow 2-3 Days
SNR USFCE212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert - Allow 2-3 Days
Regular price
€77,95
ex VAT
Regular price
Sale price
€77,95
ex VAT
In stock
Price Break
3+
€59,10
4+
€55,78
9+
€55,11
19+
€54,45
49+
€53,79
99+
€53,12
499+
€49,80
999+
€49,14
1999+
€48,47
2999+
€47,81
4999+
€46,48
Quantity
Couldn't load pickup availability
Share this product
Description
Description
USFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- USFCE
- Pitch Circle Diameter:
- 160mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 30.5mm |
| A1 | 16mm |
| A2 | 37.8mm |
| A3 | 3mm |
| B | 53.7mm |
| e | -1mm |
| H3 | 135mm |
| J | 160mm |
| L | 195mm |
| N | 18mm |
| S | 14.9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.63 kg |
