SKU: USFCE209-SNR

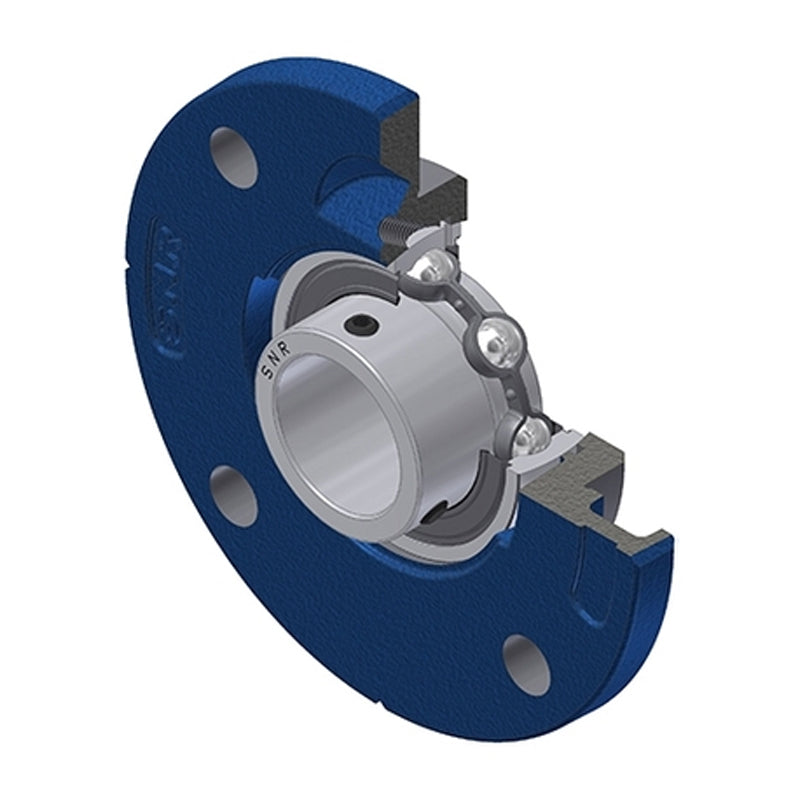

SNR USFCE209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert - Allow 2-3 Days
SNR USFCE209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert - Allow 2-3 Days
Regular price
€47,95
ex VAT
Regular price
Sale price
€47,95
ex VAT
In stock
Price Break
3+
€36,03
4+
€34,01
9+
€33,60
19+
€33,20
49+
€32,79
99+
€32,39
499+
€30,36
999+
€29,96
1999+
€29,55
2999+
€29,15
4999+
€28,34
Quantity
Couldn't load pickup availability
Share this product
Description
Description
USFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- USFCE
- Pitch Circle Diameter:
- 130mm
Technical
Technical

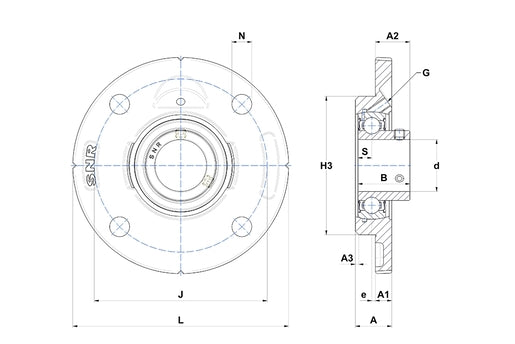

| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| A | 25mm |
| A1 | 12mm |
| A2 | 29mm |
| A3 | 2mm |
| B | 41.2mm |
| e | -2mm |
| H3 | 105mm |
| J | 130mm |
| L | 155mm |
| N | 14mm |
| S | 10.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.83 kg |
