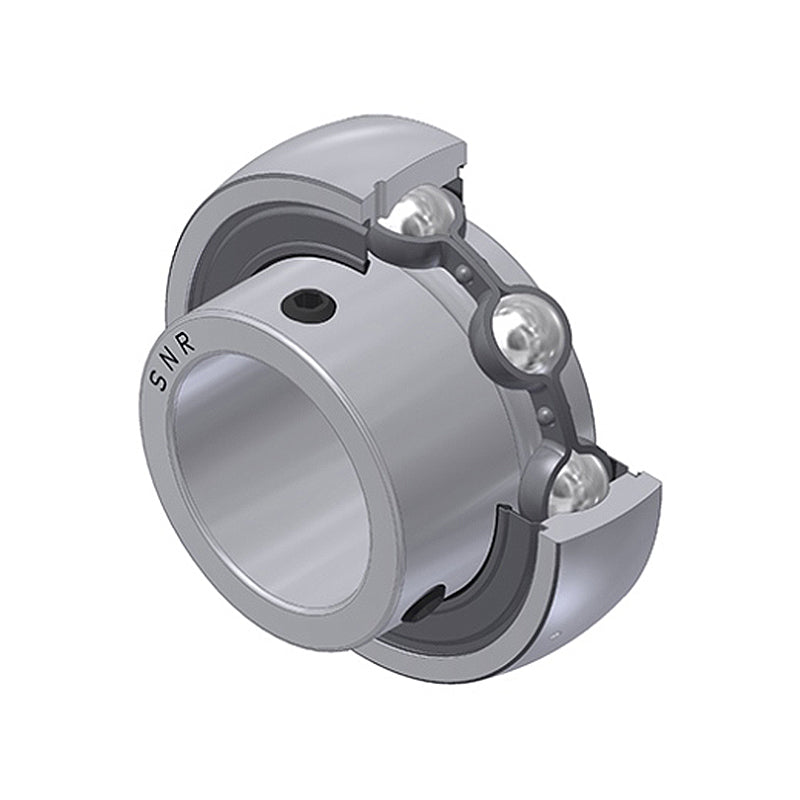

SNR US205-16G2 Imperial Flatback Spherical Outer Bearing Insert 1 inch Bore 52mm Outside Diameter with Grub Screws

SNR US Flatback Spherical Outer Bearing Insert with Grub Screws: This bearing insert is crafted as a standard version, offering dependable performance across various applications. Each steel insert features a single lip seal on both sides and a narrow inner ring design. It incorporates a zinc-coated sheet steel retainer with a vulcanized seal, where the axially preloaded seal lip is made from NBR and positioned behind a protective edge. Designed for normal environmental conditions, this insert supports medium to high rotation speeds, ensuring consistent performance in demanding settings.
Benefits: High-quality brand, high-performance, precision-engineered

Brand / Quality:

SNR - High Quality

Thread Size:

1/4-28UNF

Inside Diameter:

25.4mm = 1 inch

Outside Diameter:

52mm

Width:

27mm

Style:

US
