SKU: UKT210HCC-SNR

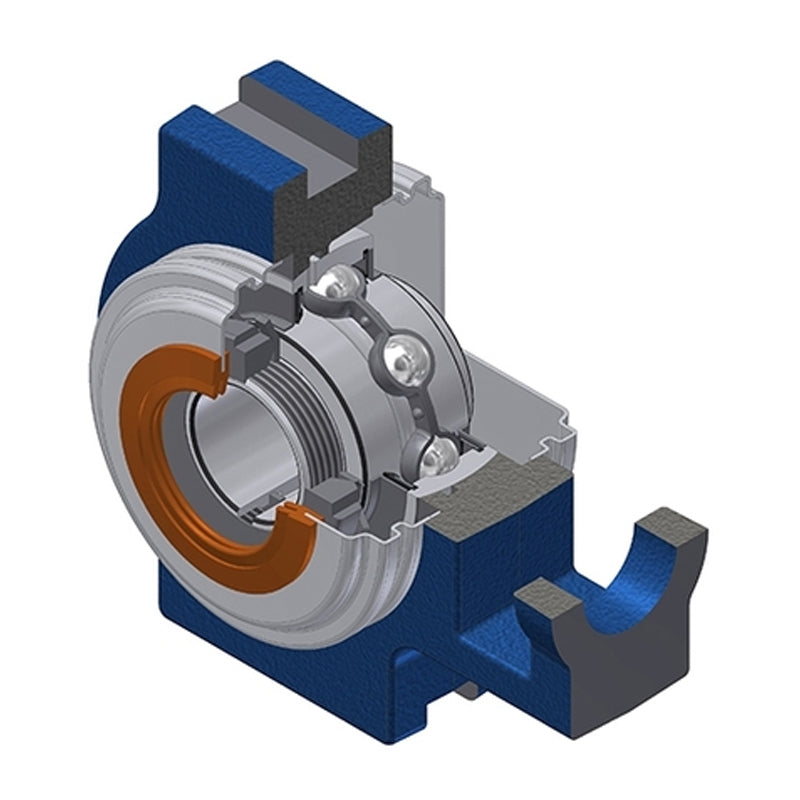

SNR UKT210HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 45mm Shaft - Closed Version - Allow 2-3 Days

SNR UKT210HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 45mm Shaft - Closed Version - Allow 2-3 Days
Regular price €83,95 ex VAT
Regular price Sale price €83,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €63,53
4+ €59,96
9+ €59,25
19+ €58,53
49+ €57,82
99+ €57,10
499+ €53,53
999+ €52,82
1999+ €52,11
2999+ €51,39
4999+ €49,97
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

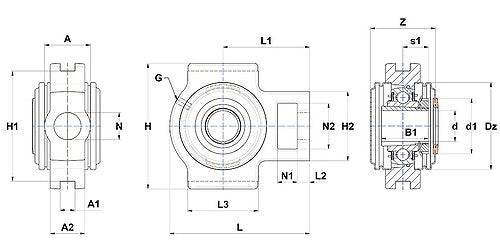

--- Dimensions
Shaft diameter d 45mm
A 49mm
A1 16mm
A2 37mm
B1 55mm
d1 70mm
H 117mm
H1 102mm
H2 83mm
L 149mm
L1 90mm
L2 16mm
L3 86mm
N 29mm
N1 19mm
N2 49mm
Dz 100mm
Z 74.6mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2310
Mass 2.752 kg
