SKU: UKPAE206HCC-SNR

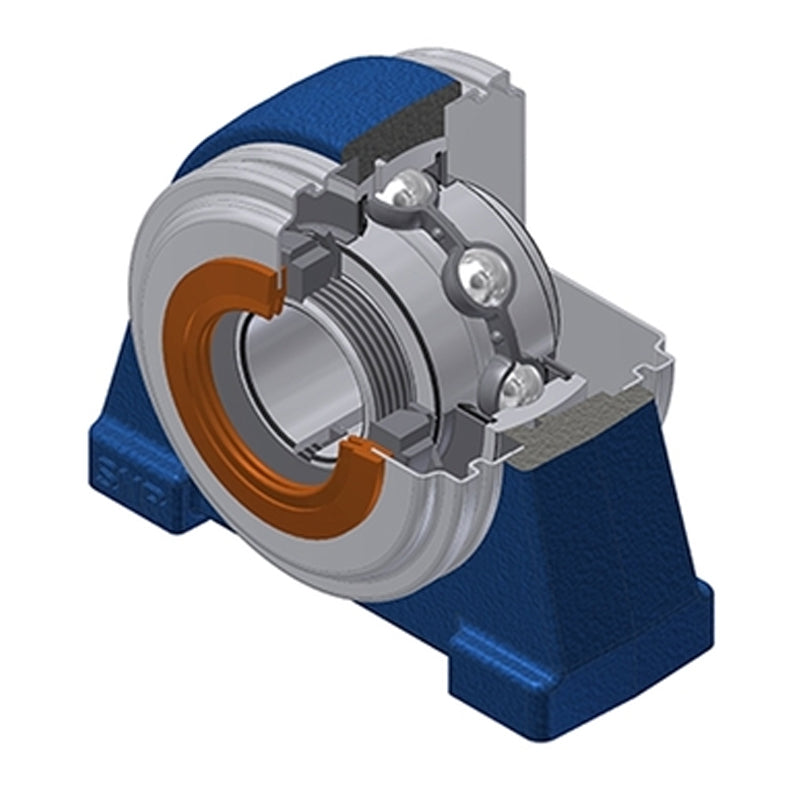

SNR UKPAE206HCC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 25mm Shaft - Allow 2-3 Days
SNR UKPAE206HCC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 25mm Shaft - Allow 2-3 Days
Regular price
€66,95
ex VAT
Regular price
Sale price
€66,95
ex VAT
In stock
Price Break
3+
€50,33
4+
€47,50
9+
€46,94
19+
€46,37
49+
€45,80
99+
€45,24
499+
€42,41
999+
€41,85
1999+
€41,28
2999+
€40,72
4999+
€39,58
Quantity
Couldn't load pickup availability
Description
Description
|
UKPA/UKPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- UKPAE
- Bolt Hole Centres:
- 76.2mm
Technical
Technical

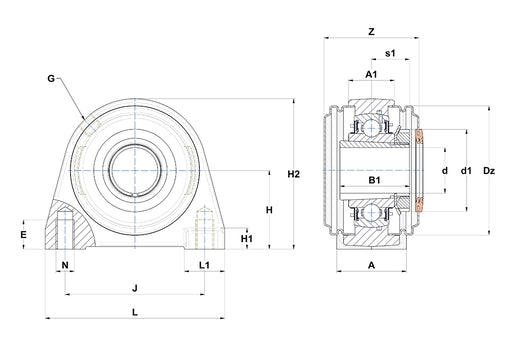

| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| A | 38mm |
| A1 | 25mm |
| B | 25mm |
| d1 | 45mm |
| E | 12.5mm |
| H | 42.9mm |
| H1 | 11mm |
| H2 | 82mm |
| J | 76.2mm |
| L | 98mm |
| L1 | 22mm |
| N | M10 |
| Dz | 70mm |
| Z | 52.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2306 |
| Mass | 1.065 kg |
