SKU: UELT212D1-NTN

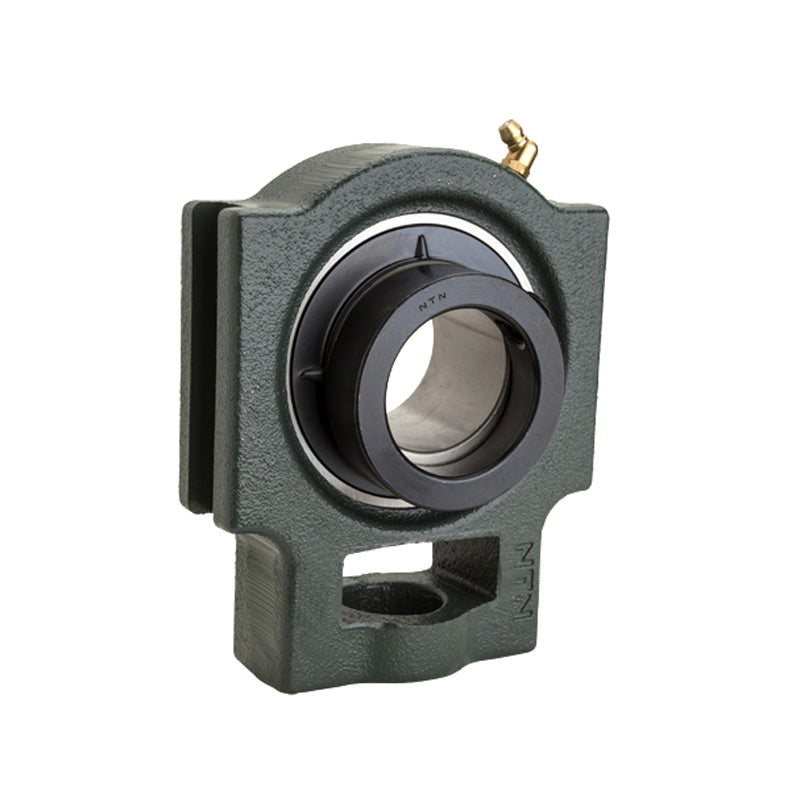

NTN UELT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
€92,95
ex VAT
Regular price
Sale price
€92,95
ex VAT
In stock
Price Break
3+
€70,01
4+
€66,07
9+
€65,29
19+
€64,50
49+
€63,71
99+
€62,93
499+
€59,00
999+
€58,21
1999+
€57,42
2999+
€56,64
4999+
€55,06
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UELT200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UELT
Technical
Technical

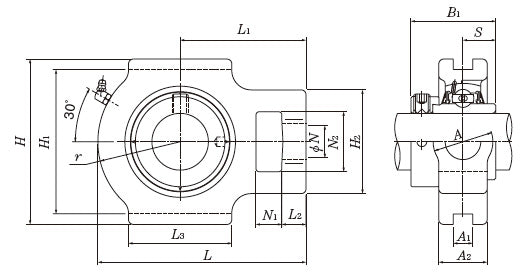

| Shaft diameter | 60mm |
|---|---|
| N<sub>1</sub> | 32mm |
| L<sub>2</sub> | 21mm |
| H<sub>2</sub> | 102mm |
| N<sub>2</sub> | 64mm |
| N | 35mm |
| L<sub>3</sub> | 102mm |
| A<sub>1</sub> | 22mm |
| H<sub>1</sub> | 130mm |
| H | 146mm |
| L | 194mm |
| A<sub>2</sub> | 42mm |
| A | 64mm |
| r | 75mm |
| L<sub>1</sub> | 119mm |
| B<sub>1</sub> | 77.8mm |
| S | 30.95mm |
| Mass | 5.2 kg |
