SKU: UELP305D1W3-NTN

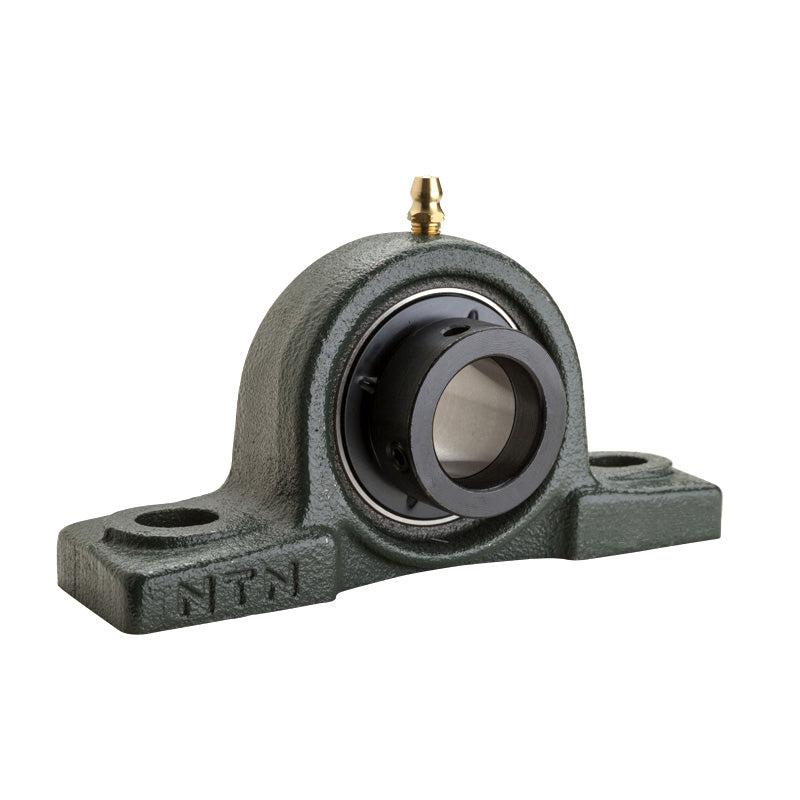

NTN UELP305D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
NTN UELP305D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELP300 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UELP
- Bolt Hole Centres:
- 132mm
Technical
Technical
| Shaft diameter | 25mm |
|---|---|
| H | 45mm |
| L | 175mm |
| J | 132mm |
| A | 45mm |
| N | 17mm |
| N<sub>1</sub> | 20mm |
| H<sub>1</sub> | 15mm |
| H<sub>2</sub> | 85mm |
| L<sub>1</sub> | 54mm |
| B<sub>1</sub> | 46.8mm |
| S | 16.7mm |
| Fixing bolt | M14 |
| Mass | 1.5 kg |
