SKU: UELFL209D1W3-NTN
NTN UELFL209D1W3 Metric Two Bolt Cast Iron Oval Housing with 45mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELFL209D1W3 Metric Two Bolt Cast Iron Oval Housing with 45mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
€58,95
ex VAT
Regular price
Sale price
€58,95
ex VAT
In stock
Price Break
3+
€44,18
4+
€41,70
9+
€41,20
19+
€40,70
49+
€40,21
99+
€39,71
499+
€37,23
999+
€36,73
1999+
€36,24
2999+
€35,74
4999+
€34,75
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UELFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UELFL
- Bolt Hole Centres:
- 148mm

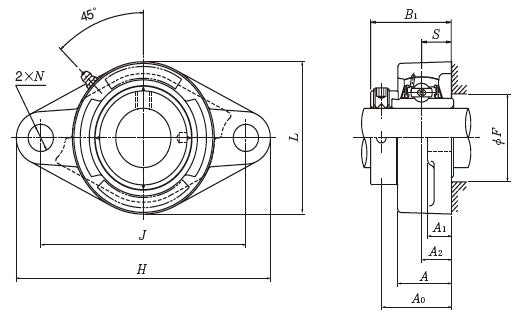

Technical
Technical
| Shaft diameter | 45mm |
|---|---|
| H | 188mm |
| J | 148mm |
| A<sub>2</sub> | 22mm |
| A<sub>1</sub> | 16mm |
| A | 38mm |
| N | 19mm |
| L | 108mm |
| A<sub>0</sub> | 56.9mm |
| B<sub>1</sub> | 56.3mm |
| S | 21.4mm |
| F min. | 62mm |
| Fixing bolt | M16 |
| Mass | 2 kg |
