SKU: UELF213D1W3-NTN

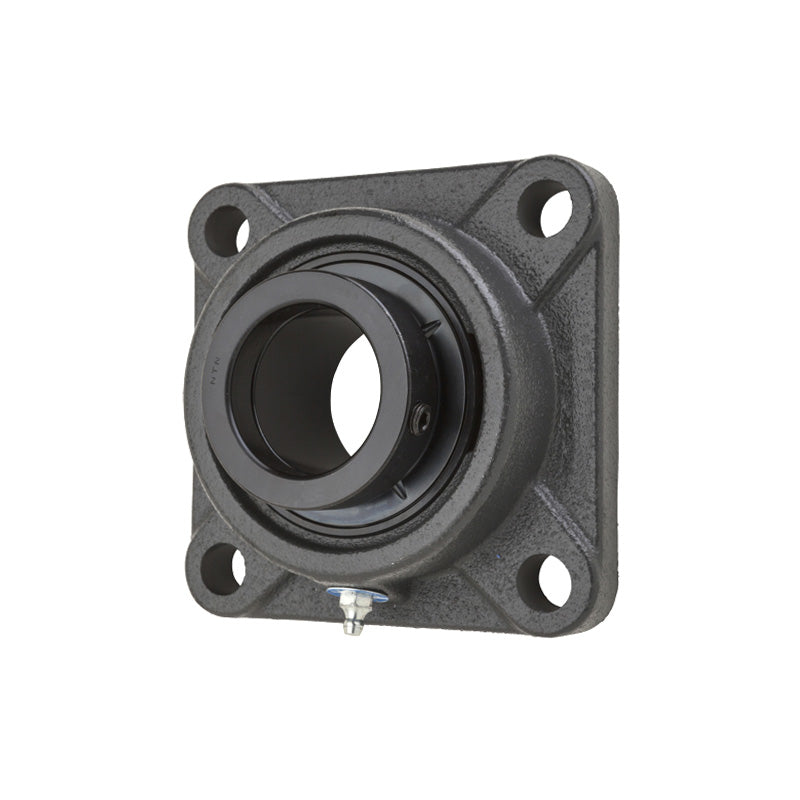

NTN UELF213D1W3 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELF213D1W3 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UELF
- Bolt Hole Centres:
- 149mm
Technical
Technical
| Shaft diameter | 65mm |
|---|---|
| L | 187mm |
| J | 149mm |
| A<sub>2</sub> | 30mm |
| A<sub>1</sub> | 22mm |
| A | 50mm |
| N | 19mm |
| A<sub>0</sub> | 81.55mm |
| B<sub>1</sub> | 85.7mm |
| S | 34.15mm |
| F min. | 87mm |
| Fixing bolt | M16 |
| Mass | 6.1 kg |
