SKU: UELF212-206D1W3-NTN

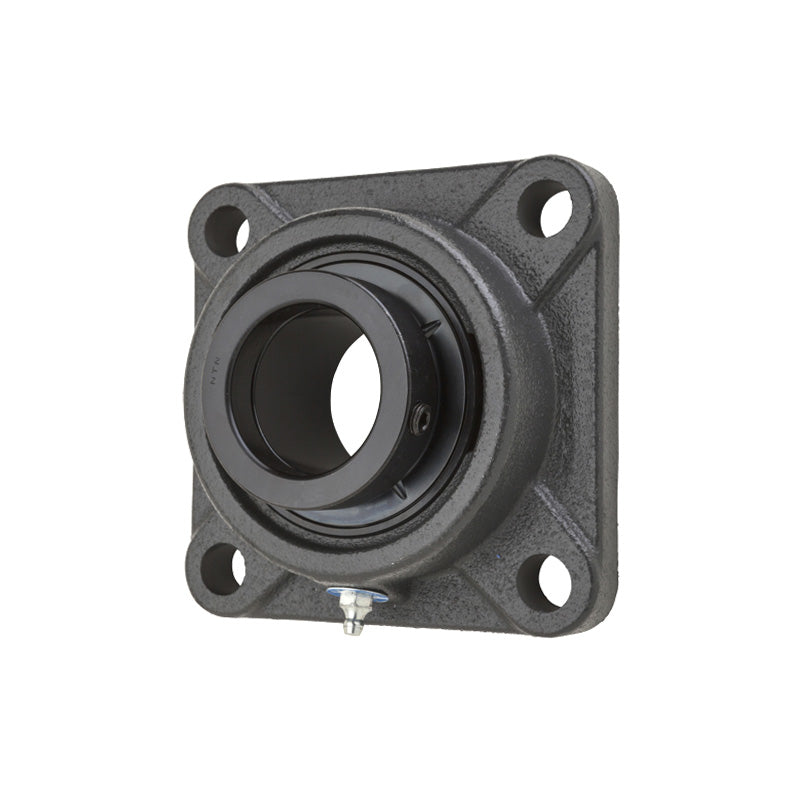

NTN UELF212-206D1W3 Imperial Four Bolt Square Cast Iron Flange Housing with 2-3/8 inch Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELF212-206D1W3 Imperial Four Bolt Square Cast Iron Flange Housing with 2-3/8 inch Bore Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Style:
- UELF
- Bolt Hole Centres:
- 5-5/8 inch
Technical
Technical
| Shaft diameter | 2-3/8 inch |
|---|---|
| L | 6-7/8 inch |
| J | 5-5/8 inch |
| A<sub>2</sub> | 1-9/64 inch |
| A<sub>1</sub> | 23/32 inch |
| A | 1-7/8 inch |
| N | 3/4 inch |
| A<sub>0</sub> | 2-63/64 inch |
| B<sub>1</sub> | 3.063 inch |
| S | 1.219 inch |
| F min. | 3-3/16 inch |
| Fixing bolt | 5/8 inch |
| Mass | 9.3 lbs |
