SKU: UCX.15-48.TS.CHAL

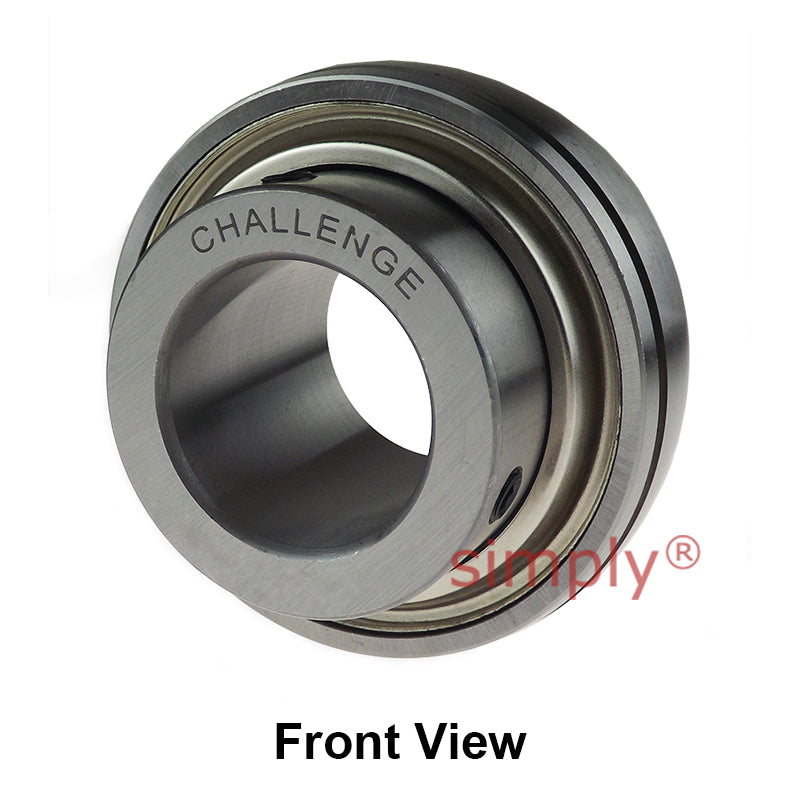

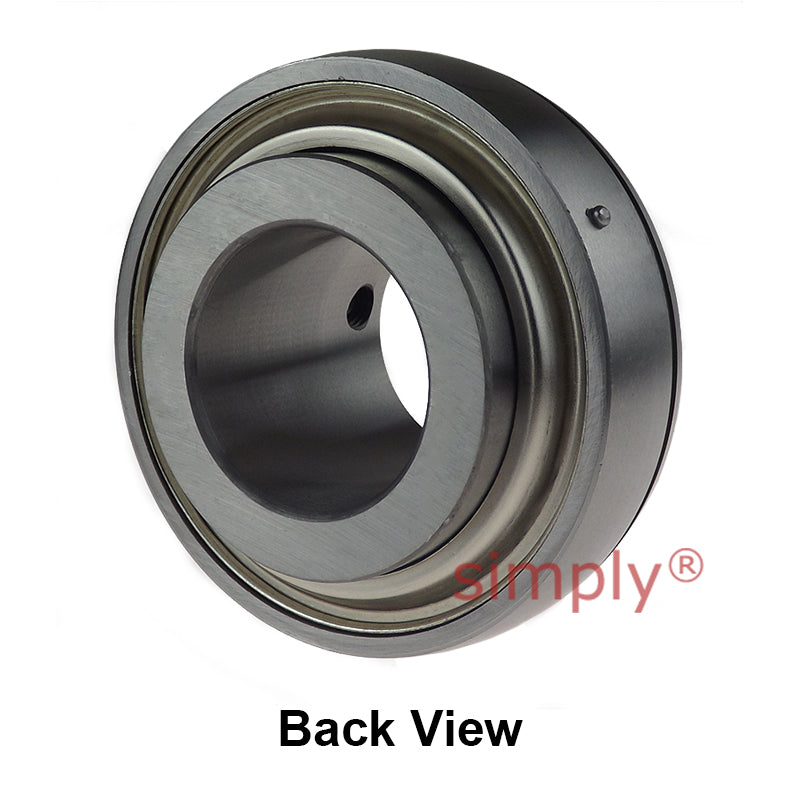

Challenge UCX15-48 Imperial Insert with Grub Screws with 3 inch Bore 140mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UCX15-48 Imperial Insert with Grub Screws with 3 inch Bore 140mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€210,95
ex VAT
Regular price
Sale price
€210,95
ex VAT
Equivalent to: UCX.15-48
In stock
Price Break
3+
€159,82
5+
€150,84
9+
€149,04
19+
€147,25
49+
€145,45
74+
€143,65
99+
€134,68
199+
€132,88
249+
€131,08
499+
€129,29
999+
€125,70
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- UCX
Technical
Technical
| Shaft Diameter d | 3 inch |
|---|---|
| Outside Diameter D | 140mm |
| Overall Width Bi | 82.6mm |
| Inner Race Width Be | 33mm |
| Back of Bearing to Centre Line n | 33.3mm |
| Front of Bearing to Centre Line m | 49.3mm |
| Dimension G | 12mm |
| Grub Screws x 2 | 7/16 - 24UNF inch |
| Load Rating (Dynamic) | 5700kg |
| Load Rating (Static) | 4550kg |
| Max Speed | 1200 rev/min |
| Working Temperature | -30°C to +120°C |
