SKU: UCX.10.TS.CHAL

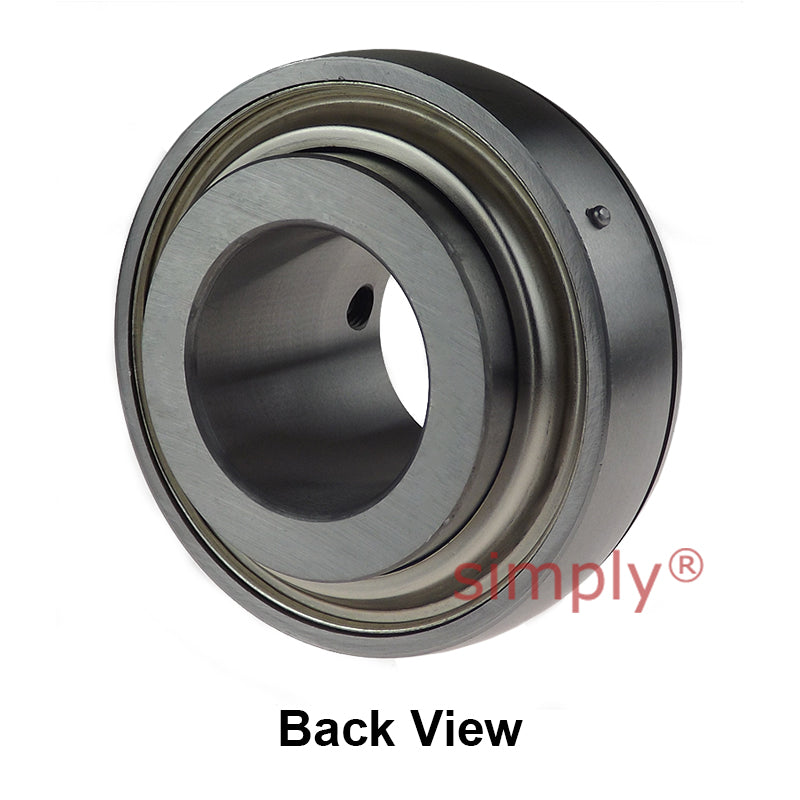

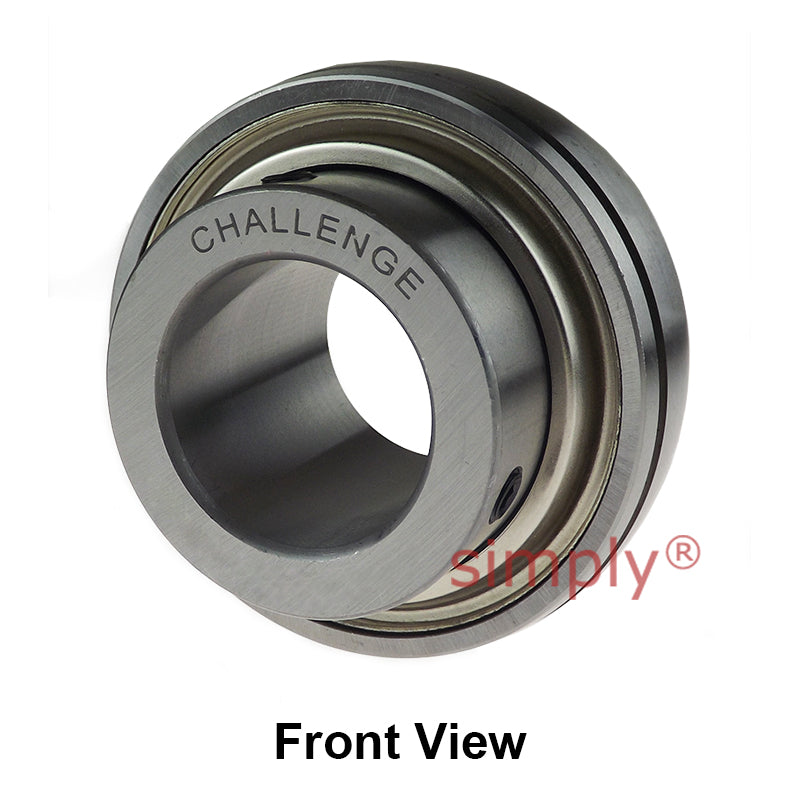

Challenge UCX10 Metric Insert with Grub Screws with 50mm Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UCX10 Metric Insert with Grub Screws with 50mm Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€73,95
ex VAT
Regular price
Sale price
€73,95
ex VAT
Equivalent to: UCX.10
In stock
Price Break
3+
€55,91
5+
€52,77
9+
€52,14
19+
€51,52
49+
€50,89
74+
€50,26
99+
€47,12
199+
€46,49
249+
€45,86
499+
€45,23
999+
€43,98
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 50mm
- Style:
- UCX
Technical
Technical
| Shaft Diameter d | 50mm |
|---|---|
| Outside Diameter D | 100mm |
| Overall Width Bi | 55.6mm |
| Inner Race Width Be | 25mm |
| Back of Bearing to Centre Line n | 22.2mm |
| Front of Bearing to Centre Line m | 33.4mm |
| Dimension G | 10mm |
| Grub Screws x 2 | M10X1.25mm |
| Load Rating (Dynamic) | 3400kg |
| Load Rating (Static) | 2550kg |
| Max Speed | 1800 rev/min |
| Working Temperature | -30°C to +120°C |
