SKU: UCX.09.TS.CHAL

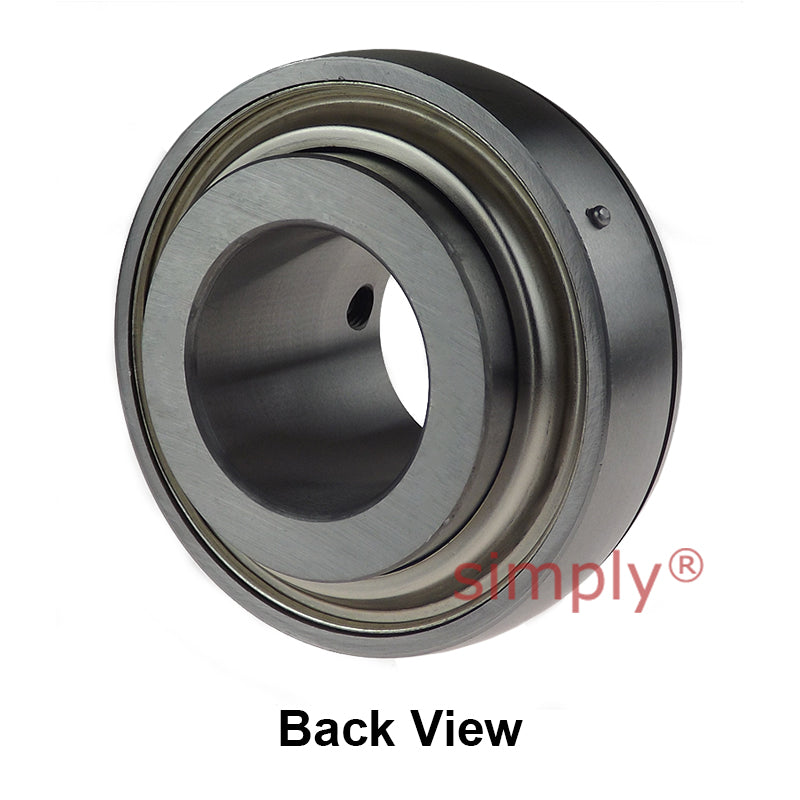

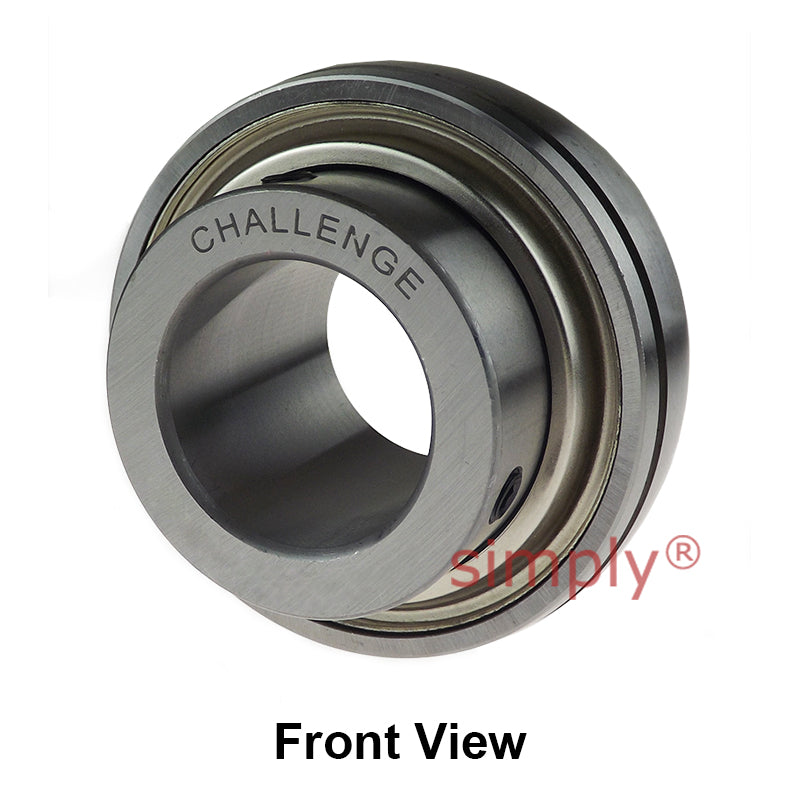

Challenge UCX09 Metric Insert with Grub Screws with 45mm Bore 90mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge UCX09 Metric Insert with Grub Screws with 45mm Bore 90mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price €59,95 ex VAT
Regular price Sale price €59,95 ex VAT
Sale Sold out

Equivalent to: UCX.09

In stock

Price Break
3+ €45,45
5+ €42,90
9+ €42,39
19+ €41,88
49+ €41,37
74+ €40,86
99+ €38,30
199+ €37,79
249+ €37,28
499+ €36,77
999+ €35,75
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Shaft Diameter d 45mm
Outside Diameter D 90mm
Overall Width Bi 51.6mm
Inner Race Width Be 24mm
Back of Bearing to Centre Line n 19mm
Front of Bearing to Centre Line m 32.6mm
Dimension G 10mm
Grub Screws x 2 M8x1.0mm
Load Rating (Dynamic) 2750kg
Load Rating (Static) 2020kg
Max Speed 1900 rev/min
Working Temperature -30°C to +120°C
