SKU: UCX.08-24.TS.CHAL

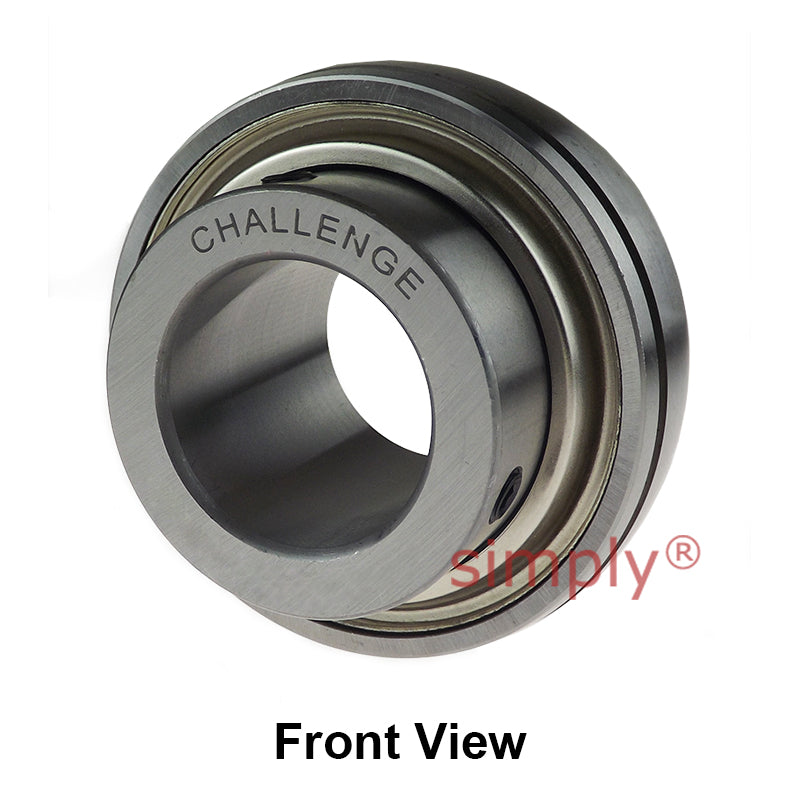

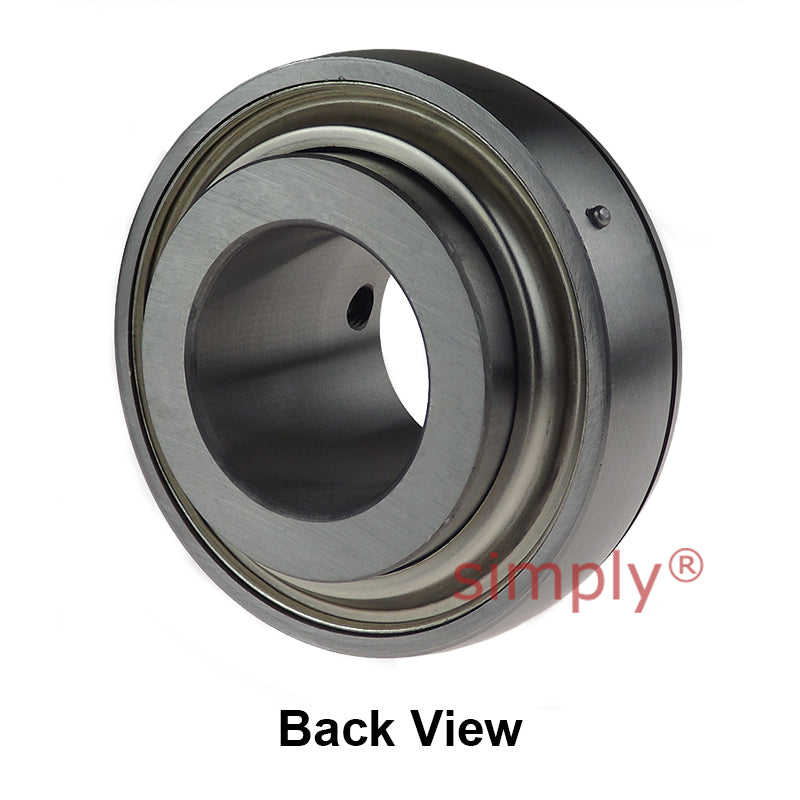

Challenge UCX08-24 Imperial Insert with Grub Screws with 1-1/2 inch Bore 85mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UCX08-24 Imperial Insert with Grub Screws with 1-1/2 inch Bore 85mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€50,95
ex VAT
Regular price
Sale price
€50,95
ex VAT
Equivalent to: UCX.08-24
In stock
Price Break
3+
€38,29
5+
€36,13
9+
€35,70
19+
€35,27
49+
€34,84
74+
€34,41
99+
€32,26
199+
€31,83
249+
€31,40
499+
€30,97
999+
€30,11
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UCX
Technical
Technical
| Shaft Diameter d | 1-1/2 inch |
|---|---|
| Outside Diameter D | 85mm |
| Overall Width Bi | 49.2mm |
| Inner Race Width Be | 22mm |
| Back of Bearing to Centre Line n | 19mm |
| Front of Bearing to Centre Line m | 30.2mm |
| Dimension G | 8mm |
| Grub Screws x 2 | 5/16 - 24UNF inch |
| Load Rating (Dynamic) | 2650kg |
| Load Rating (Static) | 1910kg |
| Max Speed | 2200 rev/min |
| Working Temperature | -30°C to +120°C |
