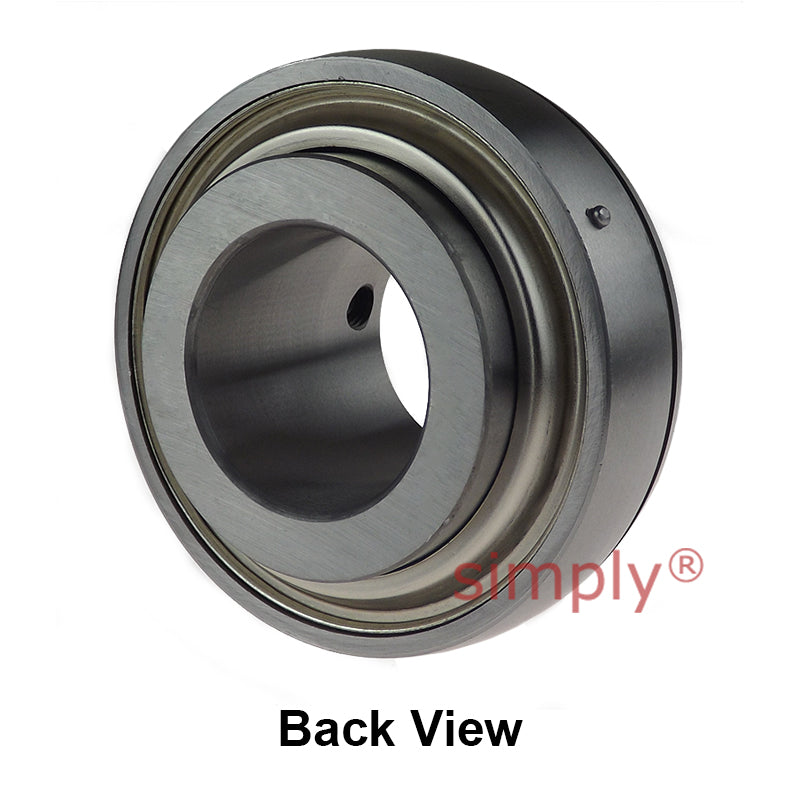

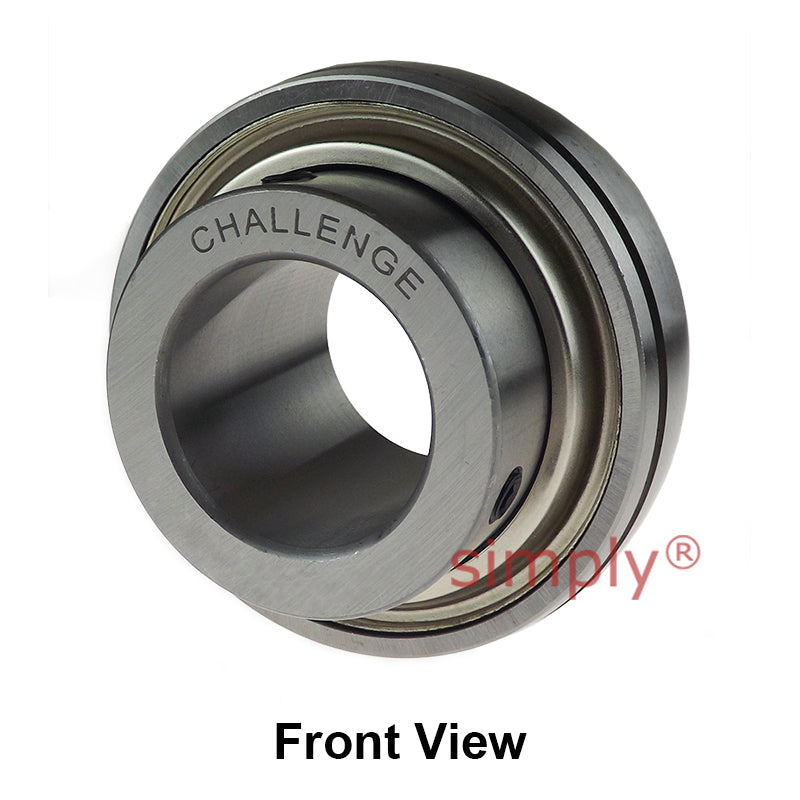

Challenge UCX07-22 Imperial Insert with Grub Screws with 1-3/8 inch Bore 80mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UCX07-22 Imperial Insert with Grub Screws with 1-3/8 inch Bore 80mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€41,95
ex VAT
Regular price
Sale price
€41,95
ex VAT
Equivalent to: UCX.07-22
In stock
Price Break
3+
€31,55
5+
€29,78
9+
€29,42
19+
€29,07
49+
€28,72
74+
€28,36
99+
€26,59
199+
€26,23
249+
€25,88
499+
€25,52
999+
€24,82
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- UCX
Technical
Technical
| Shaft Diameter d | 1-3/8 inch |
|---|---|
| Outside Diameter D | 80mm |
| Overall Width Bi | 49.2mm |
| Inner Race Width Be | 22mm |
| Back of Bearing to Centre Line n | 19mm |
| Front of Bearing to Centre Line m | 30.2mm |
| Dimension G | 8mm |
| Grub Screws x 2 | 5/16 - 24UNF inch |
| Load Rating (Dynamic) | 2560kg |
| Load Rating (Static) | 1810kg |
| Max Speed | 2400 rev/min |
| Working Temperature | -30°C to +120°C |
