SKU: UCX.06-20.TS.CHAL

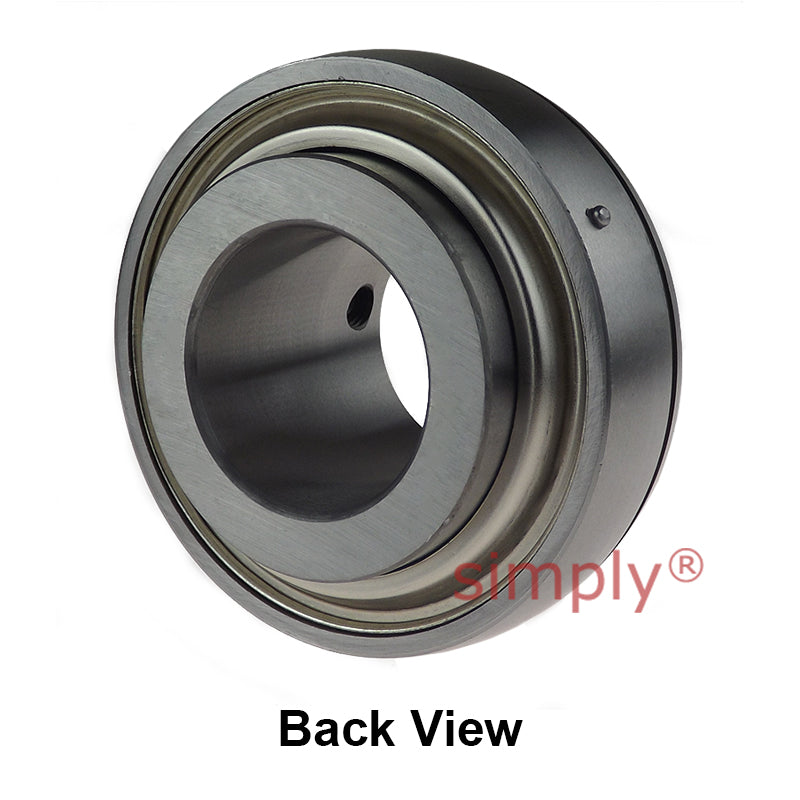

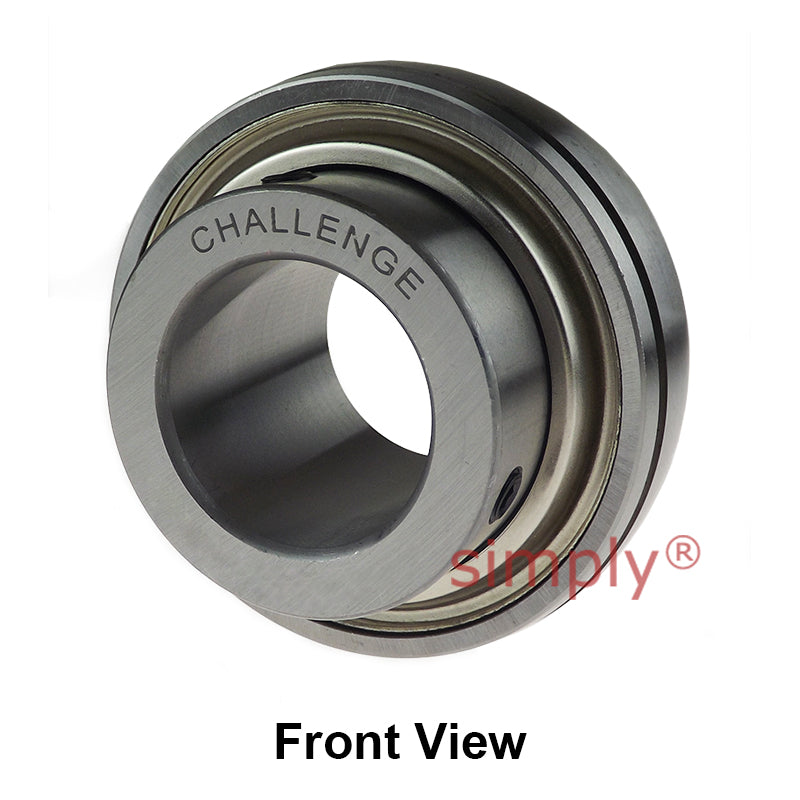

Challenge UCX06-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UCX06-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€43,95
ex VAT
Regular price
Sale price
€43,95
ex VAT
Equivalent to: UCX.06-20
In stock
Price Break
3+
€33,24
5+
€31,37
9+
€31,00
19+
€30,62
49+
€30,25
74+
€29,87
99+
€28,01
199+
€27,63
249+
€27,26
499+
€26,89
999+
€26,14
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UCX
Technical
Technical
| Shaft Diameter d | 1-1/4 inch |
|---|---|
| Outside Diameter D | 72mm |
| Overall Width Bi | 42.9mm |
| Inner Race Width Be | 20mm |
| Back of Bearing to Centre Line n | 17.5mm |
| Front of Bearing to Centre Line m | 25.4mm |
| Dimension G | 6.5mm |
| Grub Screws x 2 | 1/4 - 28UNF inch |
| Load Rating (Dynamic) | 2010kg |
| Load Rating (Static) | 1390kg |
| Max Speed | 2800 rev/min |
| Working Temperature | -30°C to +120°C |
