SKU: UCX.05-16.TS.CHAL

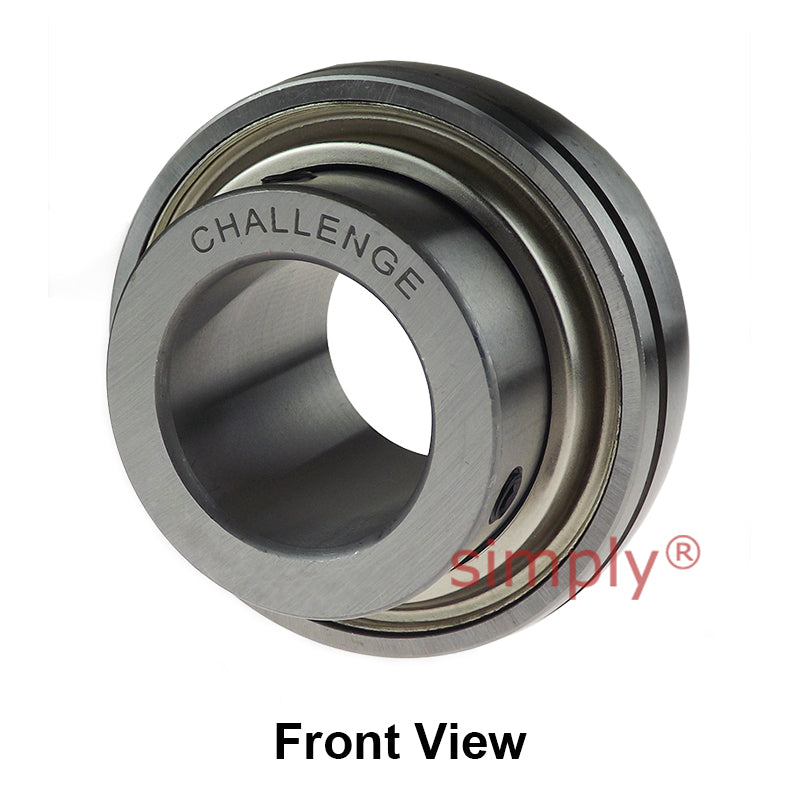

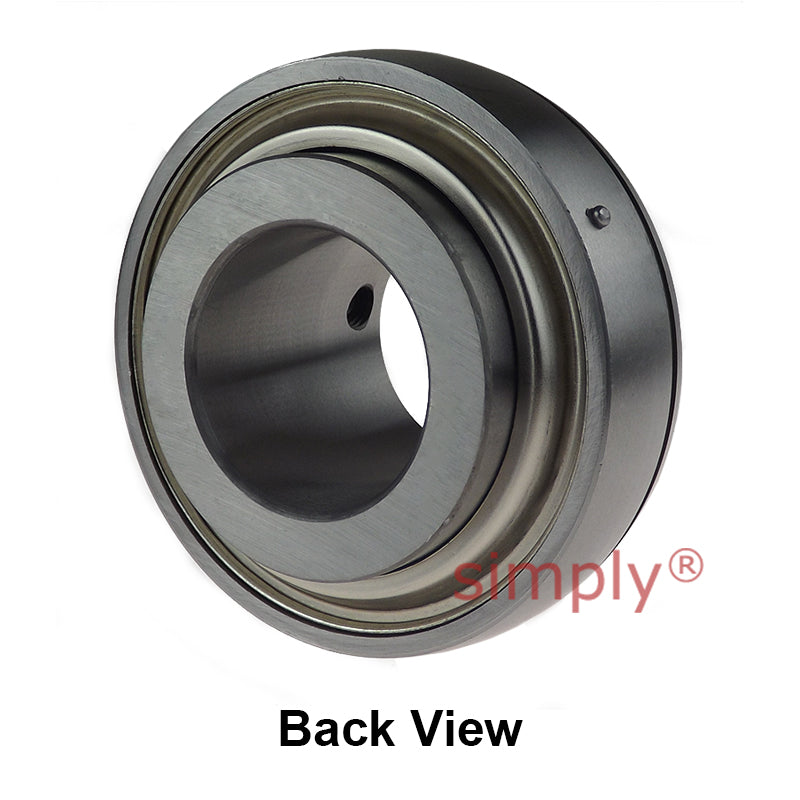

Challenge UCX05-16 Imperial Insert with Grub Screws with 1 inch Bore 62mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge UCX05-16 Imperial Insert with Grub Screws with 1 inch Bore 62mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price €12,95 ex VAT
Regular price Sale price €12,95 ex VAT
Sale Sold out

Equivalent to: UCX.05-16

Low stock

Price Break
3+ €9,23
5+ €8,71
9+ €8,61
19+ €8,50
49+ €8,40
74+ €8,30
99+ €7,78
199+ €7,67
249+ €7,57
499+ €7,47
999+ €7,26
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Shaft Diameter d 1 inch
Outside Diameter D 62mm
Overall Width Bi 38.1mm
Inner Race Width Be 19mm
Back of Bearing to Centre Line n 15.9mm
Front of Bearing to Centre Line m 22.2mm
Dimension G 5mm
Grub Screws x 2 1/4 - 28UNF inch
Load Rating (Dynamic) 1520kg
Load Rating (Static) 1020kg
Max Speed 3400 rev/min
Working Temperature -30°C to +120°C
