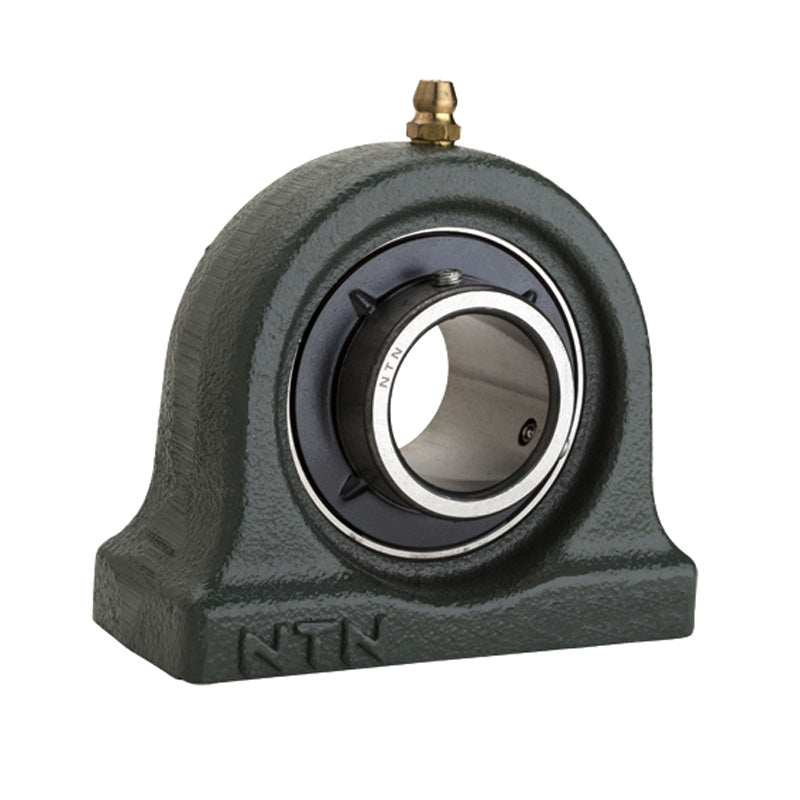

NTN UCUP206D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 30mm Bore Insert - Allow 2-3 Days
NTN UCUP206D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 30mm Bore Insert - Allow 2-3 Days
Out of stock
Description
Description
|
UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCUP
- Bolt Hole Centres:
- 66mm
Technical
Technical
| Shaft diameter | 30mm |
|---|---|
| H | 42.9mm |
| L | 94mm |
| J | 66mm |
| A | 48mm |
| j | 18mm |
| H<sub>1</sub> | 12mm |
| H<sub>2</sub> | 84mm |
| B | 38.1mm |
| S | 15.9mm |
| N | M14X2 |
| Mass | 1.1 kg |
