SKU: UCT317D1-NTN

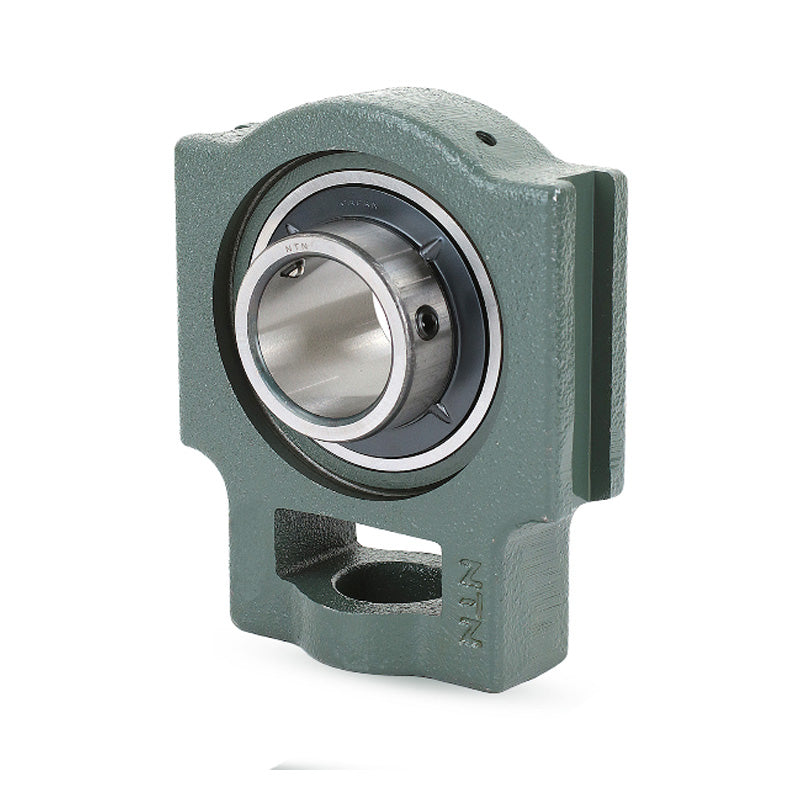

NTN UCT317D1 Metric Cast Iron Take Up Unit with 85mm Bore Bearing Unit - Allow 2-3 Days
NTN UCT317D1 Metric Cast Iron Take Up Unit with 85mm Bore Bearing Unit - Allow 2-3 Days
Regular price
€320,95
ex VAT
Regular price
Sale price
€320,95
ex VAT
In stock
Price Break
3+
€243,43
4+
€229,76
9+
€227,02
19+
€224,29
49+
€221,55
99+
€218,82
499+
€205,14
999+
€202,40
1999+
€199,67
2999+
€196,93
4999+
€191,46
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 85mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 85mm |
| N<sub>1</sub> | 42mm |
| L<sub>2</sub> | 32mm |
| H<sub>2</sub> | 152mm |
| N<sub>2</sub> | 98mm |
| N | 53mm |
| L<sub>3</sub> | 170mm |
| A<sub>1</sub> | 32mm |
| H<sub>1</sub> | 214mm |
| H | 240mm |
| L | 298mm |
| A<sub>2</sub> | 64mm |
| A | 102mm |
| r | 115mm |
| L<sub>1</sub> | 183mm |
| B | 96mm |
| S | 40mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 147 kN |
| Static load C<sub>0r</sub> | 97 kN |
| Fatigue load limit C<sub>u</sub> | 6.55 kN |
| --- | Unit information |
| Mass | 19 kg |
