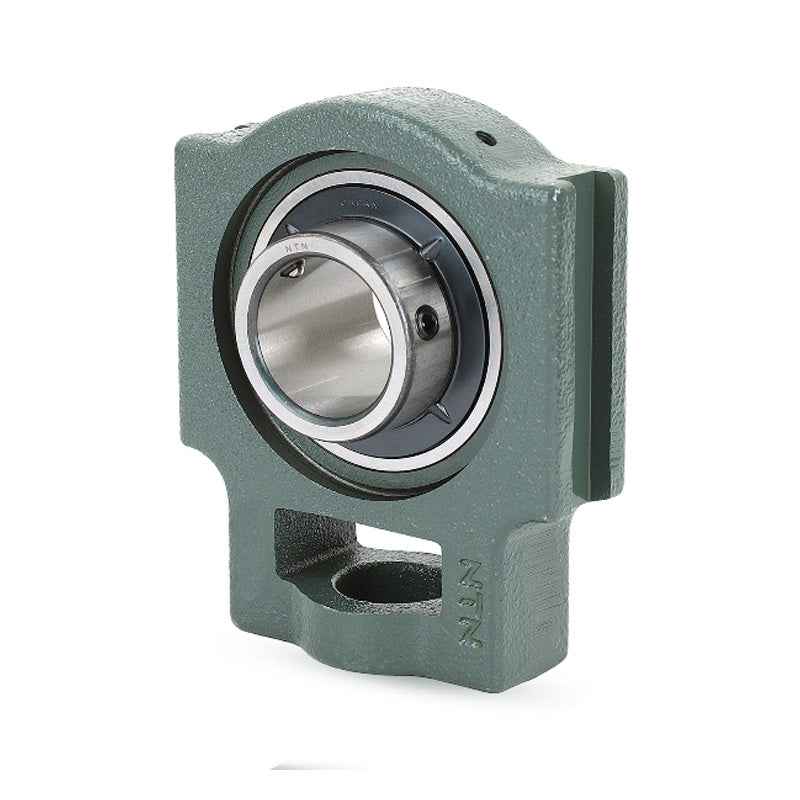

NTN UCT316D1 Metric Cast Iron Take Up Unit with 80mm Bore Bearing Unit - Allow 2-3 Days
NTN UCT316D1 Metric Cast Iron Take Up Unit with 80mm Bore Bearing Unit - Allow 2-3 Days
Regular price
€279,95
ex VAT
Regular price
Sale price
€279,95
ex VAT
In stock
Price Break
3+
€212,11
4+
€200,20
9+
€197,81
19+
€195,43
49+
€193,05
99+
€190,66
499+
€178,75
999+
€176,36
1999+
€173,98
2999+
€171,60
4999+
€166,83
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 80mm |
| N<sub>1</sub> | 42mm |
| L<sub>2</sub> | 30mm |
| H<sub>2</sub> | 150mm |
| N<sub>2</sub> | 98mm |
| N | 53mm |
| L<sub>3</sub> | 160mm |
| A<sub>1</sub> | 30mm |
| H<sub>1</sub> | 204mm |
| H | 230mm |
| L | 282mm |
| A<sub>2</sub> | 60mm |
| A | 102mm |
| r | 108mm |
| L<sub>1</sub> | 174mm |
| B | 86mm |
| S | 34mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 136 kN |
| Static load C<sub>0r</sub> | 86.5 kN |
| Fatigue load limit C<sub>u</sub> | 6.05 kN |
| --- | Unit information |
| Mass | 16 kg |
