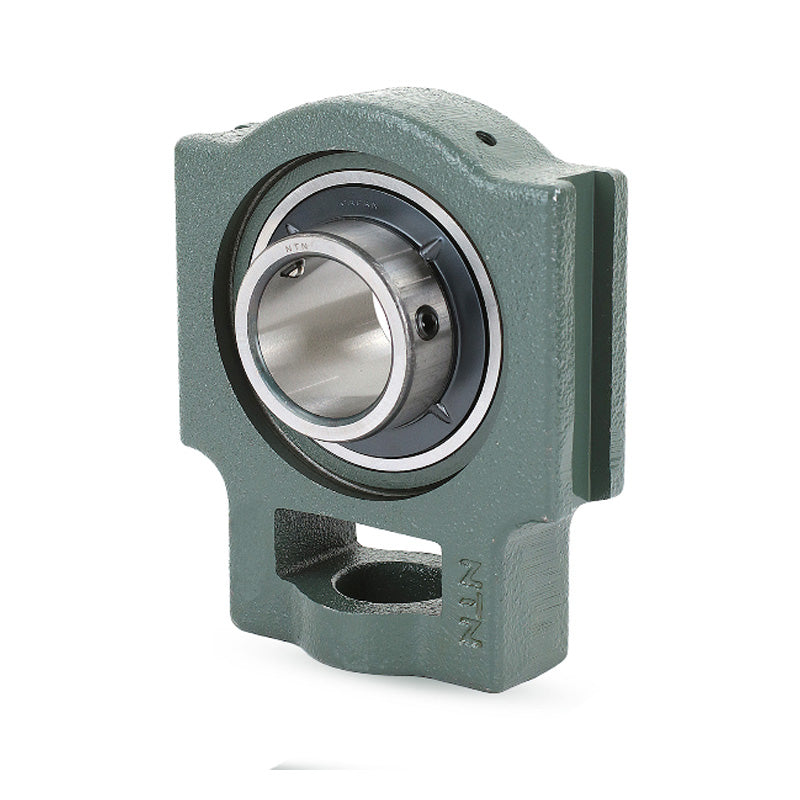

• NTN UCT217D1 Metric Cast Iron Take Up Unit with 85mm Bore Bearing Unit - Allow 2-3 Days
  • NTN
1 2

SKU: UCT217D1-NTN

NTN UCT217D1 Metric Cast Iron Take Up Unit with 85mm Bore Bearing Unit - Allow 2-3 Days

NTN UCT217D1 Metric Cast Iron Take Up Unit with 85mm Bore Bearing Unit - Allow 2-3 Days
€217,95 ex VAT
€217,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €165,14
4+ €155,86
9+ €154,01
19+ €152,15
49+ €150,30
99+ €148,44
499+ €139,16
999+ €137,31
1999+ €135,45
2999+ €133,60
4999+ €129,89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
85mm
Style:
UCT
Technical

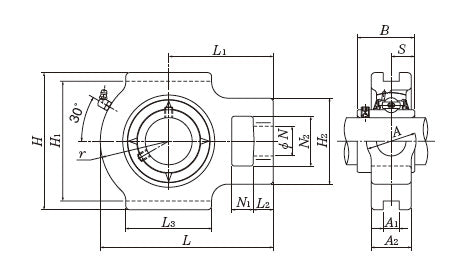

--- Dimensions
Shaft diameter 85mm
N<sub>1</sub> 38mm
L<sub>2</sub> 31mm
H<sub>2</sub> 124mm
N<sub>2</sub> 73mm
N 48mm
L<sub>3</sub> 157mm
A<sub>1</sub> 30mm
H<sub>1</sub> 173mm
H 198mm
L 260mm
A<sub>2</sub> 54mm
A 73mm
r 98mm
L<sub>1</sub> 162mm
B 85.7mm
S 34.1mm
--- Load rating
Dynamic load C<sub>r</sub> 92 kN
Static load C<sub>0r</sub> 64 kN
Fatigue load limit C<sub>u</sub> 4.6 kN
--- Unit information
Mass 11 kg
