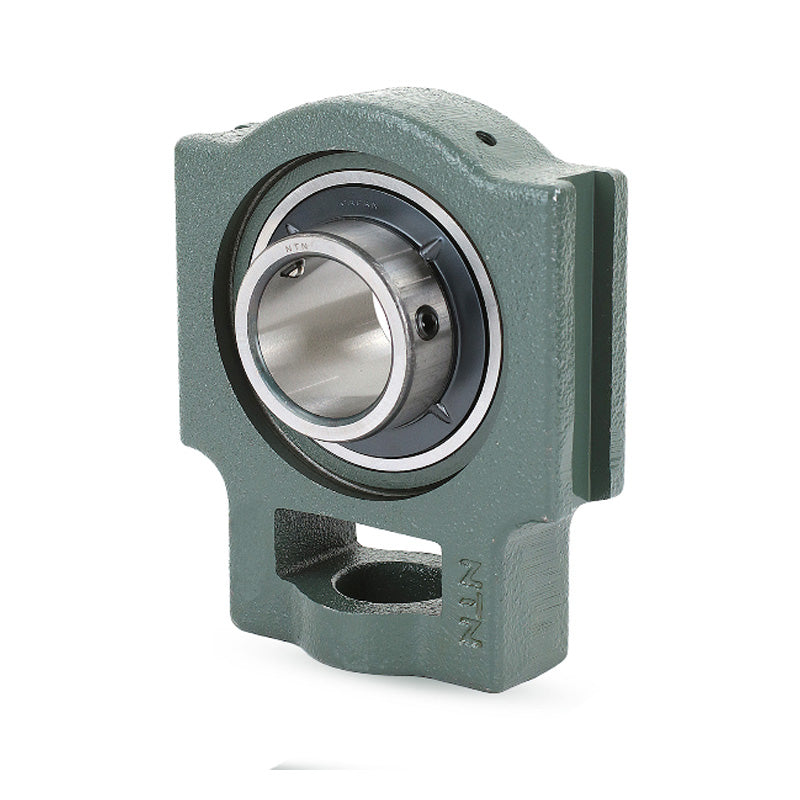

NTN UCT217-307D1 Imperial Cast Iron Take Up Unit with 3-7/16 inch Bore Bearing Unit - Allow 2-3 Days
NTN UCT217-307D1 Imperial Cast Iron Take Up Unit with 3-7/16 inch Bore Bearing Unit - Allow 2-3 Days
Out of stock
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 87.31mm = 3.437 (3-7/16) inch
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 3-7/16 inch |
| N<sub>1</sub> | 1-1/2 inch |
| L<sub>2</sub> | 1-7/32 inch |
| H<sub>2</sub> | 4-7/8 inch |
| N<sub>2</sub> | 2-7/8 inch |
| N | 1-7/8 inch |
| L<sub>3</sub> | 6-3/16 inch |
| A<sub>1</sub> | 1.181 inch |
| H<sub>1</sub> | 6-13/16 inch |
| H | 7-25/32 inch |
| L | 10-1/4 inch |
| A<sub>2</sub> | 2-1/8 inch |
| A | 2-7/8 inch |
| r | 3-27/32 inch |
| L<sub>1</sub> | 6-3/8 inch |
| B | 3.374 inch |
| S | 1.343 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 92 kN |
| Static load C<sub>0r</sub> | 64 kN |
| Fatigue load limit C<sub>u</sub> | 4.6 kN |
| --- | Unit information |
| Mass | 24 lbs |
