SKU: UCT210CC-SNR

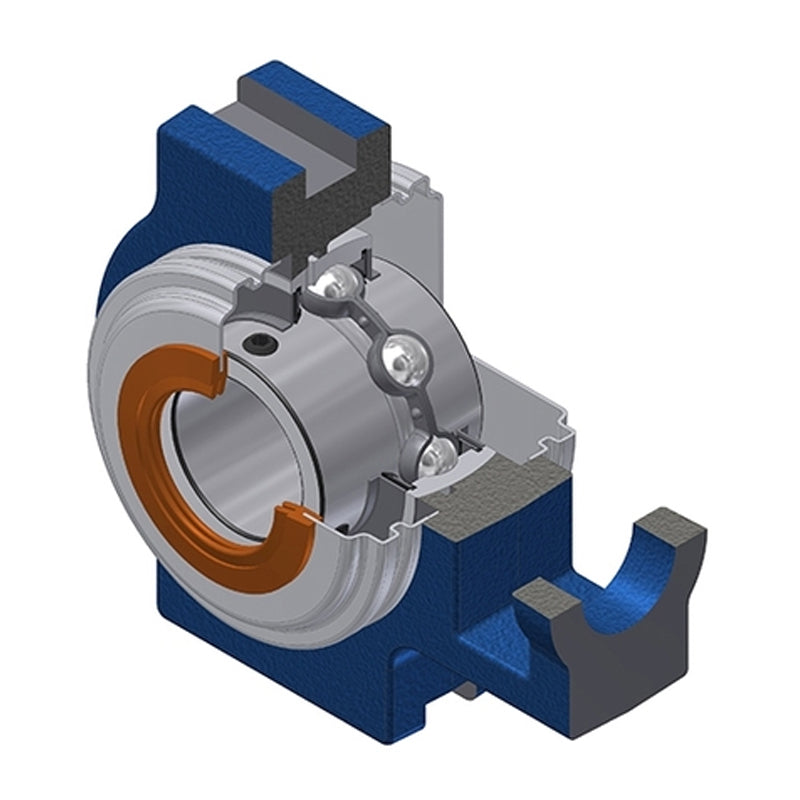

SNR UCT210CC Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR UCT210CC Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
€70,95
ex VAT
Regular price
Sale price
€70,95
ex VAT
In stock
Price Break
3+
€53,48
4+
€50,47
9+
€49,87
19+
€49,27
49+
€48,67
99+
€48,07
499+
€45,07
999+
€44,47
1999+
€43,86
2999+
€43,26
4999+
€42,06
Quantity
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCT
Technical
Technical

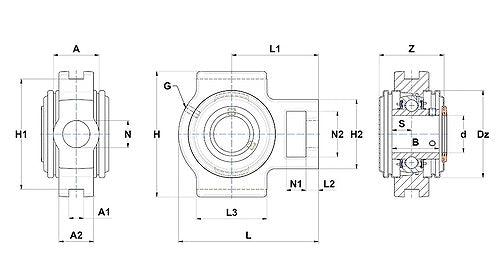

| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 49mm |
| A1 | 16mm |
| A2 | 37mm |
| B | 51.6mm |
| H | 117mm |
| H1 | 102mm |
| H2 | 83mm |
| L | 149mm |
| L1 | 90mm |
| L2 | 16mm |
| L3 | 86mm |
| N | 29mm |
| N1 | 19mm |
| N2 | 49mm |
| S | 19mm |
| Dz | 100mm |
| Z | 74.6mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.63 kg |
