SKU: UCT210-31-SNR

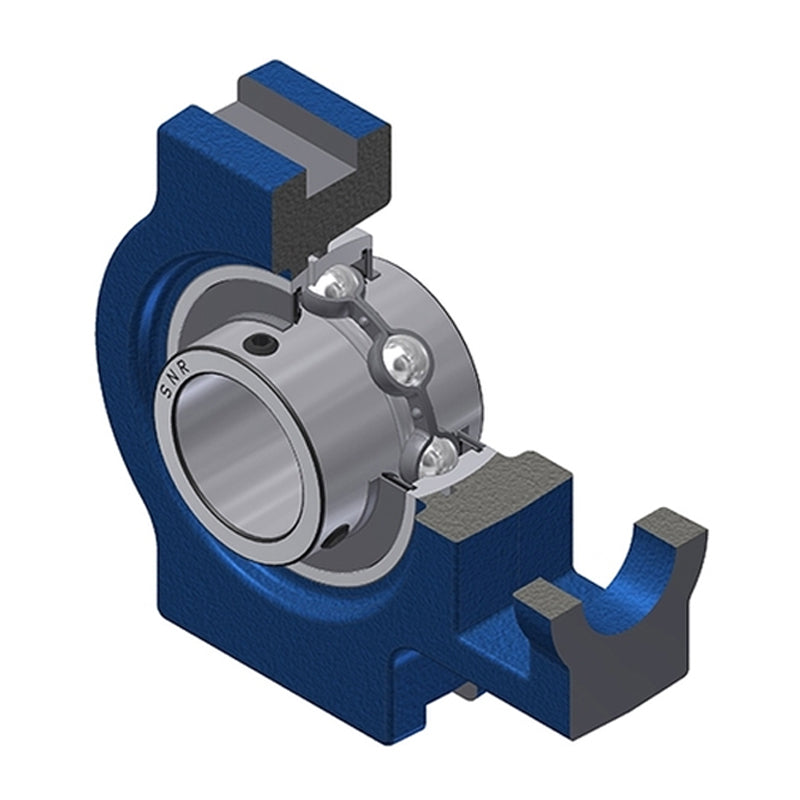

SNR UCT210-31 Imperial Cast Iron Take Up Unit with 1-15/16 inch Bore Bearing Unit - Allow 2-3 Days
SNR UCT210-31 Imperial Cast Iron Take Up Unit with 1-15/16 inch Bore Bearing Unit - Allow 2-3 Days
Regular price
€58,95
ex VAT
Regular price
Sale price
€58,95
ex VAT
In stock
Price Break
3+
€44,61
4+
€42,10
9+
€41,60
19+
€41,10
49+
€40,60
99+
€40,10
499+
€37,59
999+
€37,09
1999+
€36,59
2999+
€36,09
4999+
€35,09
Quantity
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-15/16 inch |
| A | 49mm |
| A1 | 16mm |
| A2 | 37mm |
| B | 51.6mm |
| H | 117mm |
| H1 | 102mm |
| H2 | 83mm |
| L | 149mm |
| L1 | 90mm |
| L2 | 16mm |
| L3 | 86mm |
| N | 29mm |
| N1 | 19mm |
| N2 | 49mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.52 kg |
