SKU: UCT208-SNR

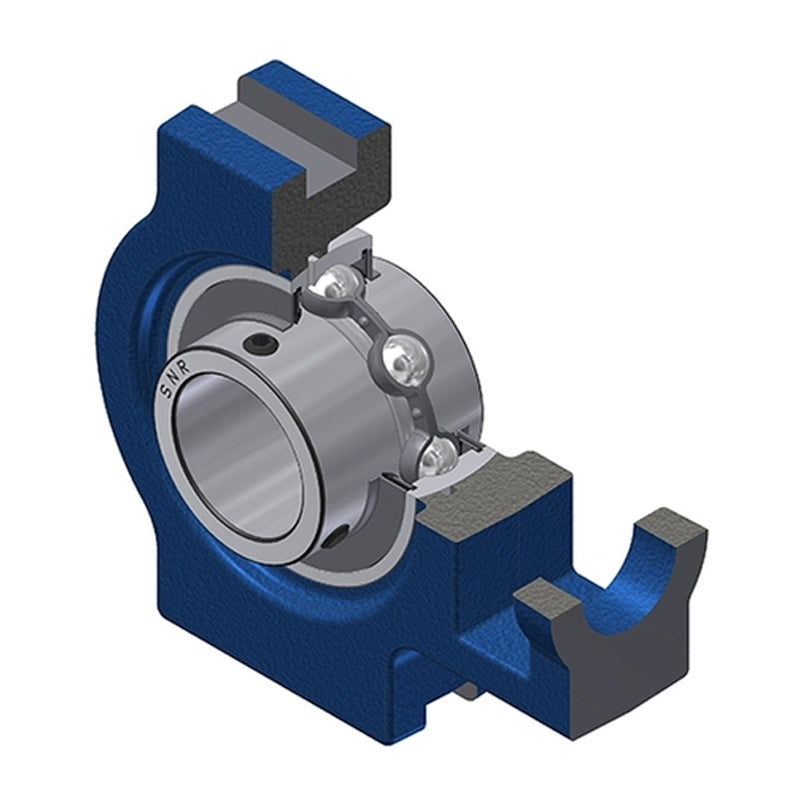

SNR UCT208 Metric Cast Iron Take Up Unit with 40mm Bore Bearing Unit - Allow 2-3 Days
SNR UCT208 Metric Cast Iron Take Up Unit with 40mm Bore Bearing Unit - Allow 2-3 Days
Regular price
€45,95
ex VAT
Regular price
Sale price
€45,95
ex VAT
In stock
Price Break
3+
€34,41
4+
€32,48
9+
€32,09
19+
€31,71
49+
€31,32
99+
€30,93
499+
€29,00
999+
€28,61
1999+
€28,23
2999+
€27,84
4999+
€27,07
Quantity
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 49mm |
| A1 | 16mm |
| A2 | 33mm |
| B | 49.2mm |
| H | 114mm |
| H1 | 102mm |
| H2 | 83mm |
| L | 144mm |
| L1 | 88mm |
| L2 | 16mm |
| L3 | 83mm |
| N | 29mm |
| N1 | 19mm |
| N2 | 49mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.34 kg |
