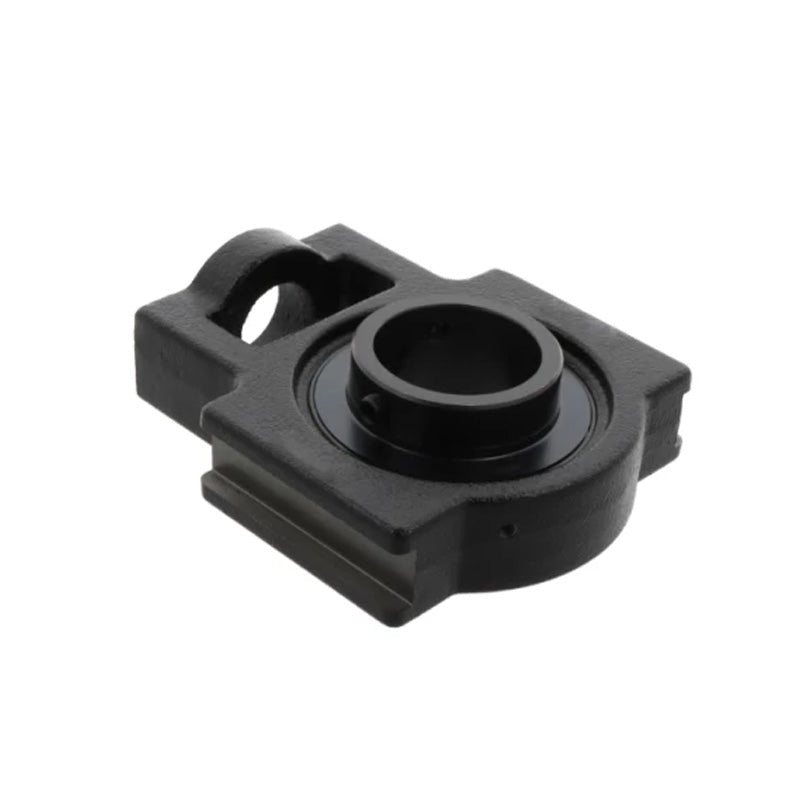

Challenge / FK UCT212 Metric Cast Iron Take Up Unit Housing with 60mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCT212 Metric Cast Iron Take Up Unit Housing with 60mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€144,95
ex VAT
Regular price
Sale price
€144,95
ex VAT
Equivalent to: UCT.212
In stock
Price Break
3+
€109,57
5+
€103,41
9+
€102,18
19+
€100,95
49+
€99,72
74+
€98,49
99+
€92,33
199+
€91,10
249+
€89,87
499+
€88,64
999+
€86,18
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT Cast Iron Take Up Unit Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 60mm
- Style:
- UCT

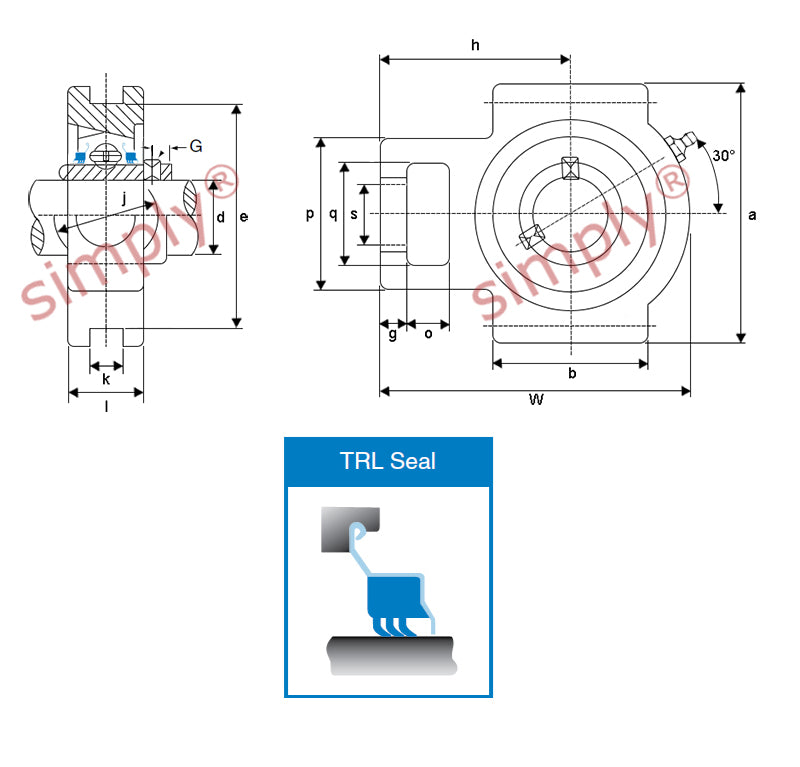

Technical
Technical
| Shaft Diameter d | 60mm |
|---|---|
| Nut Slot Width o | 32mm |
| Distance g | 19mm |
| Dimention p | 102mm |
| Dimention q | 64mm |
| Hole s | 35mm |
| Dimention b | 102mm |
| Slot Width k | 22mm |
| Distance Between Slots e | 130mm |
| Overall Casting Depth a | 146mm |
| Width w | 194mm |
| Diameter j | 64mm |
| Casting Width at Slots l | 46mm |
| Dimension h | 119mm |
| Grub Screws x 2 | M10x1.25 |
| Load Rating (Dynamic) | 4100kg |
| Load Rating (Static) | 3150kg |
| Max Speed | 1500 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC212 |
| Housing No | T212 |
