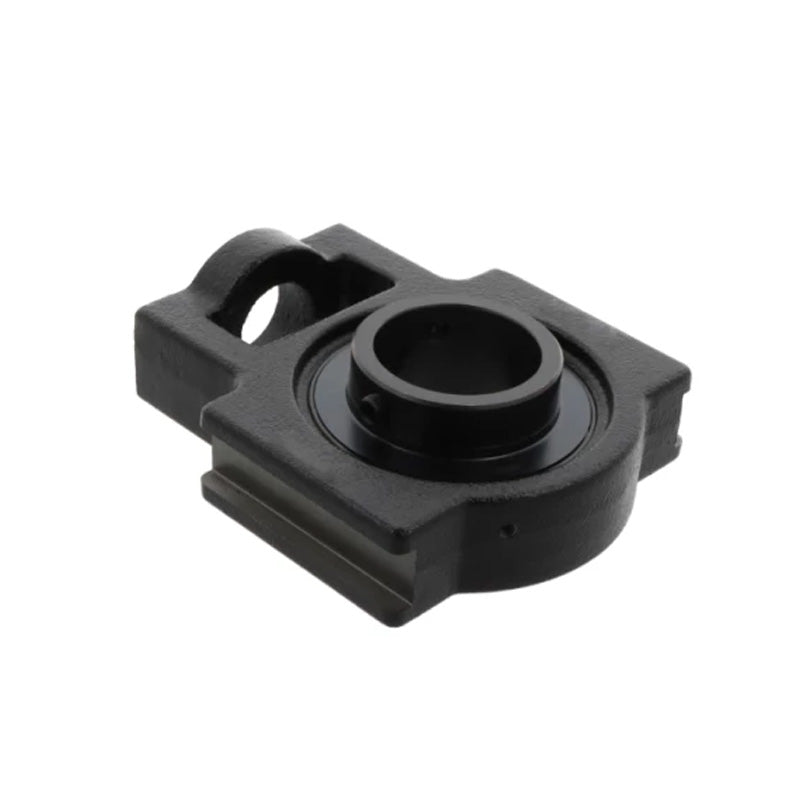

Challenge / FK UCT212-36 Imperial Cast Iron Take Up Unit Housing with 2-1/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCT212-36 Imperial Cast Iron Take Up Unit Housing with 2-1/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Shaft Diameter d 2-1/4 inch
Nut Slot Width o 32mm
Distance g 19mm
Dimention p 102mm
Dimention q 64mm
Hole s 35mm
Dimention b 102mm
Slot Width k 22mm
Distance Between Slots e 130mm
Overall Casting Depth a 146mm
Width w 194mm
Diameter j 64mm
Casting Width at Slots l 46mm
Dimension h 119mm
Grub Screws x 2 3/8 - 24UNF
Load Rating (Dynamic) 4100kg
Load Rating (Static) 3150kg
Max Speed 1500 rev/min
Grease Nipple Thread Size M8
Working Temperature -30°C to +120°C
Insert No UC212-36
Housing No T212
