SKU: UCT.211.TS.CHAL

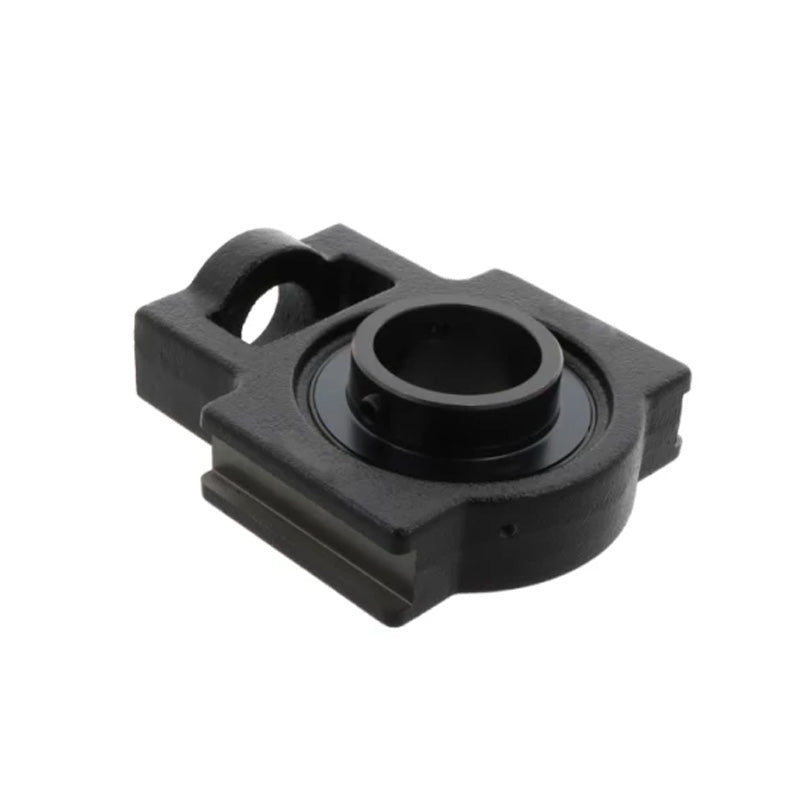

Challenge / FK UCT211 Metric Cast Iron Take Up Unit Housing with 55mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCT211 Metric Cast Iron Take Up Unit Housing with 55mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price €112,95 ex VAT
Regular price Sale price €112,95 ex VAT
Sale Sold out

Equivalent to: UCT.211

In stock

Price Break
3+ €85,75
5+ €80,94
9+ €79,97
19+ €79,01
49+ €78,05
74+ €77,08
99+ €72,27
199+ €71,30
249+ €70,34
499+ €69,37
999+ €67,45
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Shaft Diameter d 55mm
Nut Slot Width o 25mm
Distance g 19mm
Dimention p 102mm
Dimention q 64mm
Hole s 35mm
Dimention b 95mm
Slot Width k 22mm
Distance Between Slots e 130mm
Overall Casting Depth a 146mm
Width w 171mm
Diameter j 64mm
Casting Width at Slots l 41mm
Dimension h 106mm
Grub Screws x 2 M10X1.25
Load Rating (Dynamic) 3400kg
Load Rating (Static) 2550kg
Max Speed 1600 rev/min
Grease Nipple Thread Size M8
Working Temperature -30°C to +120°C
Insert No UC211
Housing No T211
