SKU: UCT.211-32

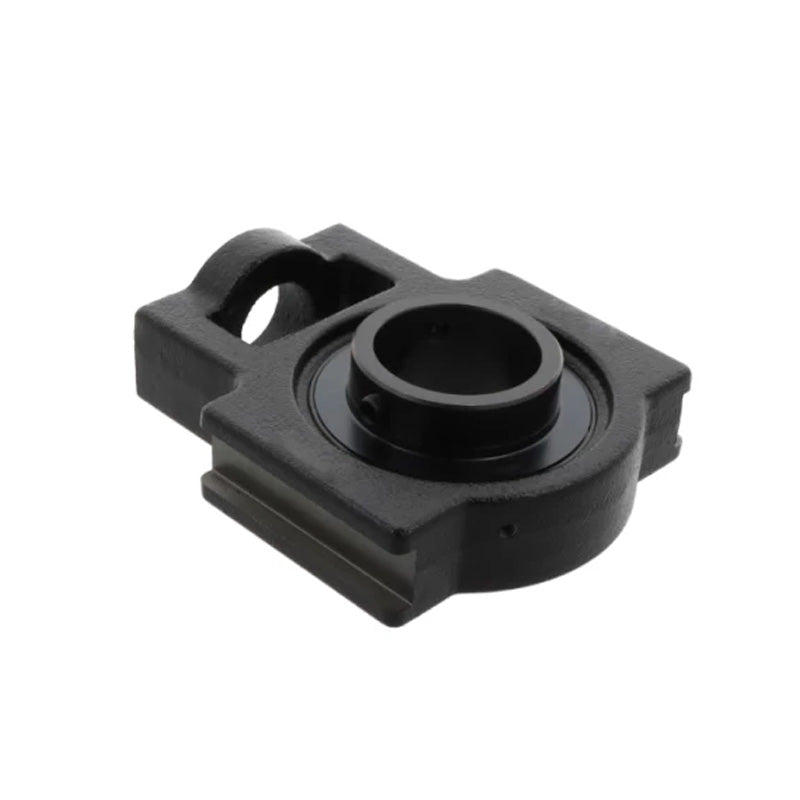

UCT211-32 Metric Series Cast Iron Take Up Unit Housing with 2 inch Bore Bearing Unit
UCT211-32 Metric Series Cast Iron Take Up Unit Housing with 2 inch Bore Bearing Unit
Equivalent to: ST2
Out of stock
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCT
Technical
Technical
| d | 2 inch |
|---|---|
| o | 25mm |
| g | 19mm |
| p | 102mm |
| q | 64mm |
| s | 35mm |
| b | 95mm |
| k | 22mm |
| e | 130mm |
| a | 146mm |
| W | 171mm |
| j | 64mm |
| L | 41mm |
| h | 106mm |
| Bi | 55.6mm |
| n | 22.2mm |
| Weight | 4.0 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
| Rec max speed | 3100 rpm |
