SKU: UCT.210.TS.CHAL

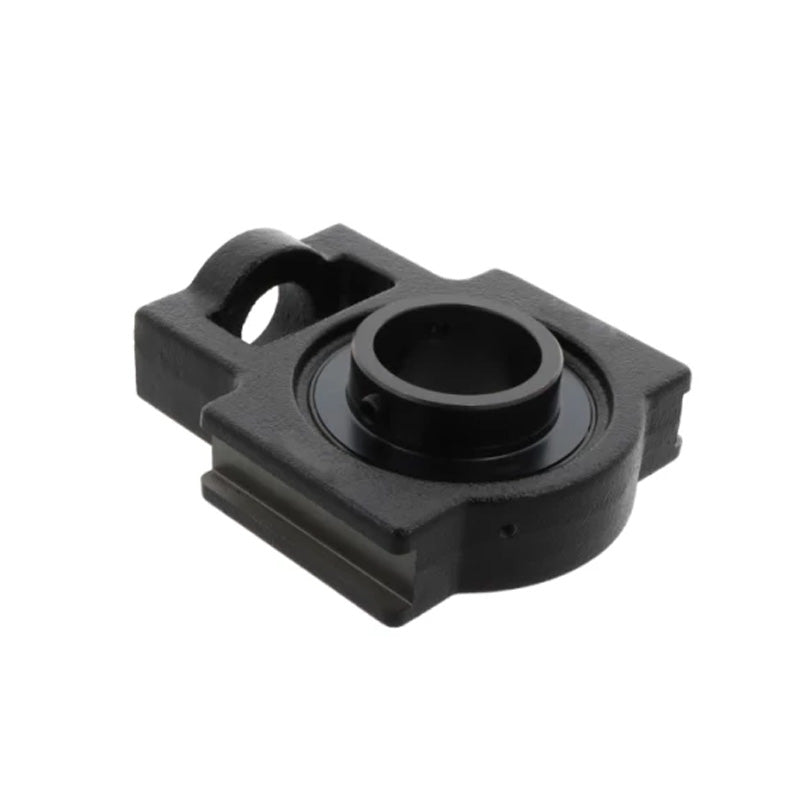

Challenge / FK UCT210 Metric Cast Iron Take Up Unit Housing with 50mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCT210 Metric Cast Iron Take Up Unit Housing with 50mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€86,95
ex VAT
Regular price
Sale price
€86,95
ex VAT
Equivalent to: UCT.210
In stock
Price Break
3+
€65,89
5+
€62,18
9+
€61,44
19+
€60,70
49+
€59,96
74+
€59,22
99+
€55,52
199+
€54,78
249+
€54,04
499+
€53,30
999+
€51,82
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT Cast Iron Take Up Unit Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 50mm
- Style:
- UCT
Technical
Technical
| Shaft Diameter d | 50mm |
|---|---|
| Nut Slot Width o | 19mm |
| Distance g | 16mm |
| Dimention p | 83mm |
| Dimention q | 49mm |
| Hole s | 29mm |
| Dimention b | 86mm |
| Slot Width k | 16mm |
| Distance Between Slots e | 102mm |
| Overall Casting Depth a | 117mm |
| Width w | 149mm |
| Diameter j | 49mm |
| Casting Width at Slots l | 35mm |
| Dimension h | 90mm |
| Grub Screws x 2 | M10x1.25 |
| Load Rating (Dynamic) | 2750kg |
| Load Rating (Static) | 2020kg |
| Max Speed | 1800 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC210 |
| Housing No | T210 |
Reviews
Reviews
☆☆☆☆☆ (0 total reviews)
