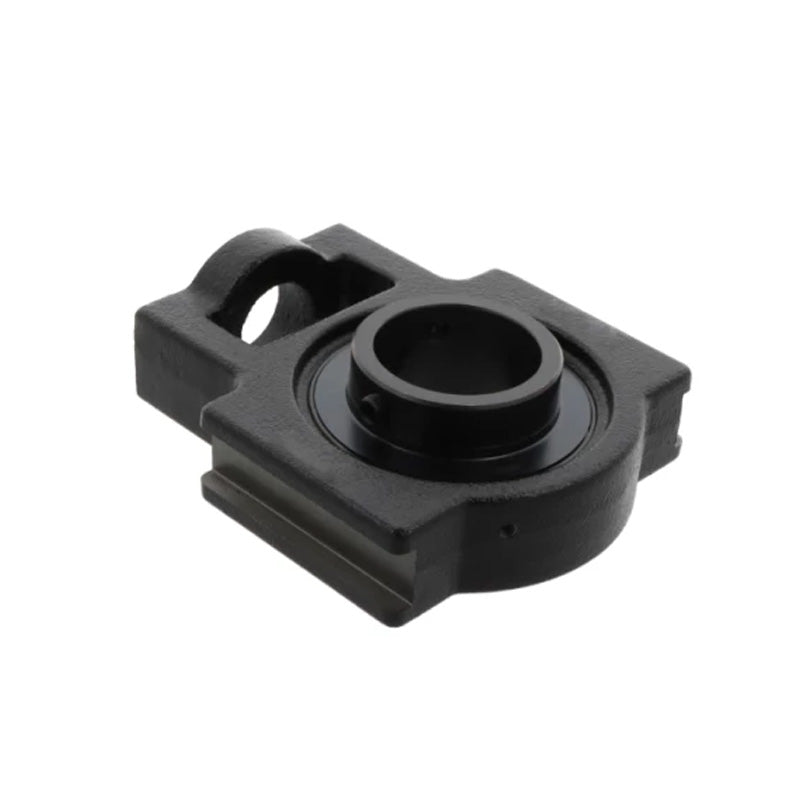

Koyo UCT209J Metric Cast Iron Take Up Unit Housing with 45mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Koyo UCT209J Metric Cast Iron Take Up Unit Housing with 45mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€42,95
ex VAT
Regular price
Sale price
€42,95
ex VAT
In stock
Price Break
10+
€32,60
19+
€30,77
29+
€30,40
39+
€30,04
49+
€29,67
74+
€29,30
99+
€27,47
199+
€27,10
249+
€26,74
499+
€26,37
999+
€25,64
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT Cast Iron Take Up Unit Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCT
Technical
Technical
| Shaft Diameter d | 45mm |
|---|---|
| Nut Slot Width o | 19mm |
| Distance g | 16mm |
| Dimention p | 83mm |
| Dimention q | 49mm |
| Hole s | 29mm |
| Dimention b | 83mm |
| Slot Width k | 16mm |
| Distance Between Slots e | 102mm |
| Overall Casting Depth a | 117mm |
| Width w | 144mm |
| Diameter j | 49mm |
| Casting Width at Slots l | 35mm |
| Dimension h | 87mm |
| Grub Screws x 2 | M8x1.0 |
| Load Rating (Dynamic) | 2560kg |
| Load Rating (Static) | 1810kg |
| Max Speed | 1900 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30?C to +120?C |
| Insert No | UC209 |
| Housing No | T209 |
