SKU: UCT.209.TS.CHAL

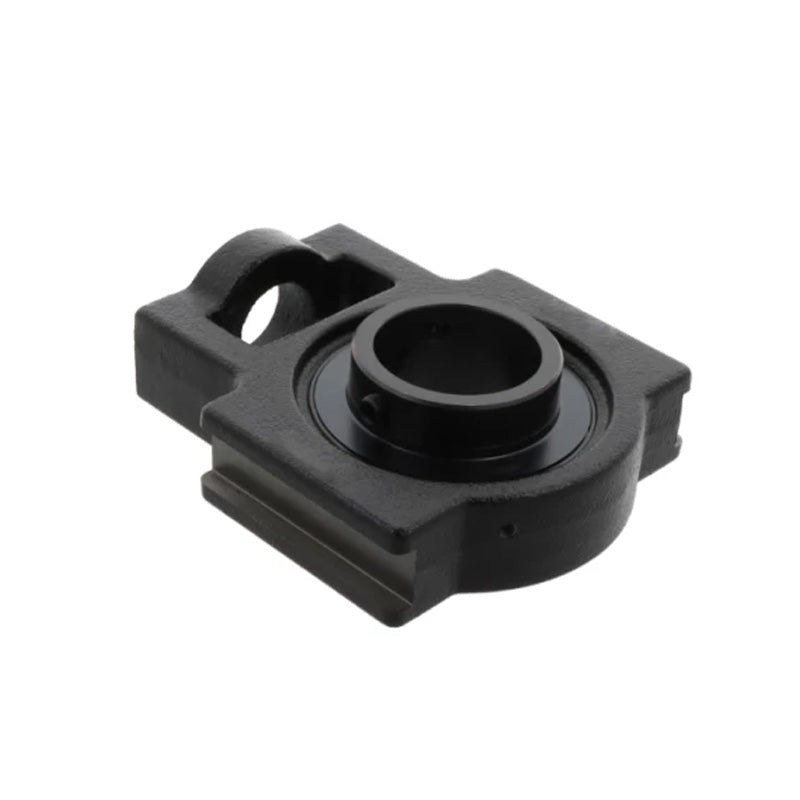

Challenge / FK UCT209 Metric Cast Iron Take Up Unit Housing with 45mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCT209 Metric Cast Iron Take Up Unit Housing with 45mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€74,95
ex VAT
Regular price
Sale price
€74,95
ex VAT
Equivalent to: UCT.209
In stock
Price Break
3+
€56,60
5+
€53,42
9+
€52,78
19+
€52,15
49+
€51,51
74+
€50,88
99+
€47,70
199+
€47,06
249+
€46,42
499+
€45,79
999+
€44,52
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT Cast Iron Take Up Unit Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 45mm
- Style:
- UCT
Technical
Technical
| Shaft Diameter d | 45mm |
|---|---|
| Nut Slot Width o | 19mm |
| Distance g | 16mm |
| Dimention p | 83mm |
| Dimention q | 49mm |
| Hole s | 29mm |
| Dimention b | 83mm |
| Slot Width k | 16mm |
| Distance Between Slots e | 102mm |
| Overall Casting Depth a | 117mm |
| Width w | 144mm |
| Diameter j | 49mm |
| Casting Width at Slots l | 35mm |
| Dimension h | 87mm |
| Grub Screws x 2 | M8x1.0 |
| Load Rating (Dynamic) | 2560kg |
| Load Rating (Static) | 1810kg |
| Max Speed | 1900 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC209 |
| Housing No | T209 |
