SKU: UCT.205.TS.CHAL

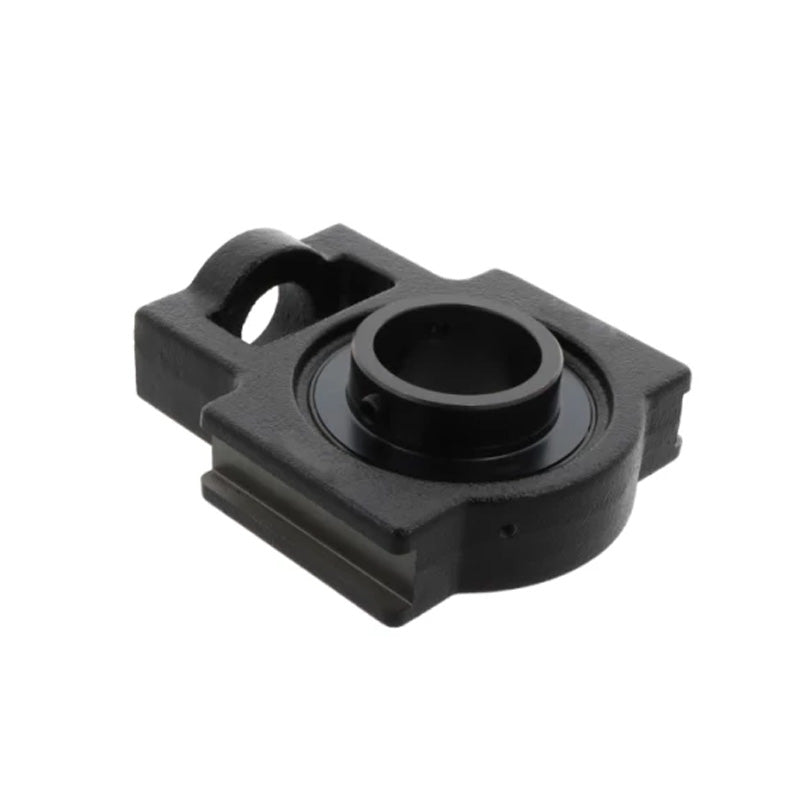

Challenge / FK UCT205 Metric Cast Iron Take Up Unit Housing with 25mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCT205 Metric Cast Iron Take Up Unit Housing with 25mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price €31,95 ex VAT
Regular price Sale price €31,95 ex VAT
Sale Sold out

Equivalent to: UCT.205

In stock

Price Break
3+ €23,62
5+ €22,29
9+ €22,02
19+ €21,76
49+ €21,49
74+ €21,23
99+ €19,90
199+ €19,64
249+ €19,37
499+ €19,11
999+ €18,58
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Shaft Diameter d 25mm
Nut Slot Width o 16mm
Distance g 10mm
Dimention p 51mm
Dimention q 32mm
Hole s 19mm
Dimention b 51mm
Slot Width k 12mm
Distance Between Slots e 76mm
Overall Casting Depth a 89mm
Width w 97mm
Diameter j 32mm
Casting Width at Slots l 24mm
Dimension h 62mm
Grub Screws x 2 M6x0.75
Load Rating (Dynamic) 1100kg
Load Rating (Static) 710kg
Max Speed 3400 rev/min
Grease Nipple Thread Size M6
Working Temperature -30°C to +120°C
Insert No UC205
Housing No T205
