SKU: UCSP204-SNR
SNR UCSP204 Metric Cast Iron Tensioner Unit with 20mm Bore Insert - Allow 2-3 Days
SNR UCSP204 Metric Cast Iron Tensioner Unit with 20mm Bore Insert - Allow 2-3 Days
Regular price
€42,95
ex VAT
Regular price
Sale price
€42,95
ex VAT
In stock
Price Break
3+
€32,60
4+
€30,77
9+
€30,40
19+
€30,04
49+
€29,67
99+
€29,30
499+
€27,47
999+
€27,10
1999+
€26,74
2999+
€26,37
4999+
€25,64
Quantity
Couldn't load pickup availability
Share this product
Description
Description

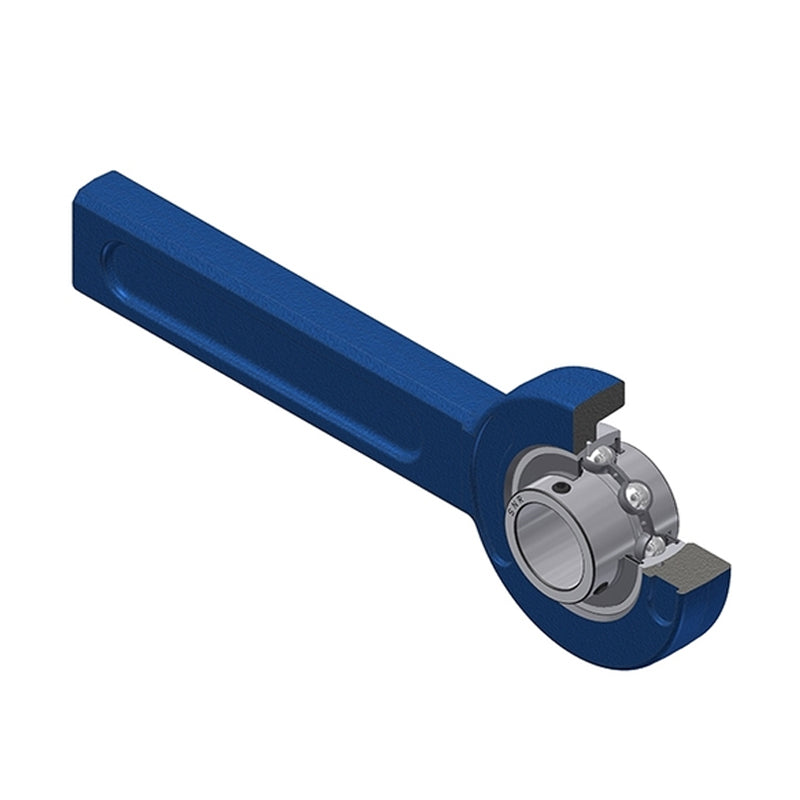

UCSP200 Series Cast Iron Tensioner Units: These bearing units are supplied with a fully sealed bearing insert fitted in the tensioner housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- UCSP
Technical
Technical

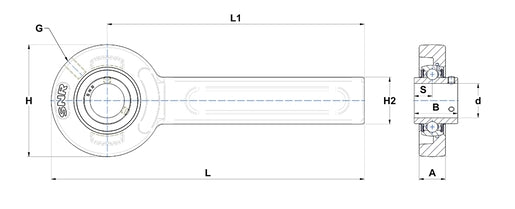

| --- | Dimensions |
|---|---|
| Shaft diameter | 20mm |
| A | 21mm |
| B | 31mm |
| H | 78mm |
| H2 | 41mm |
| L | 264mm |
| L1 | 225mm |
| S | 12.7mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Stretcher frame 2 | SPR11 |
| Stretcher frame 3 | SPR12 |
| Stretcher frame 4 | SPR14 |
| Mass | 1.57 kg |
