SKU: UCPX20D1-NTN

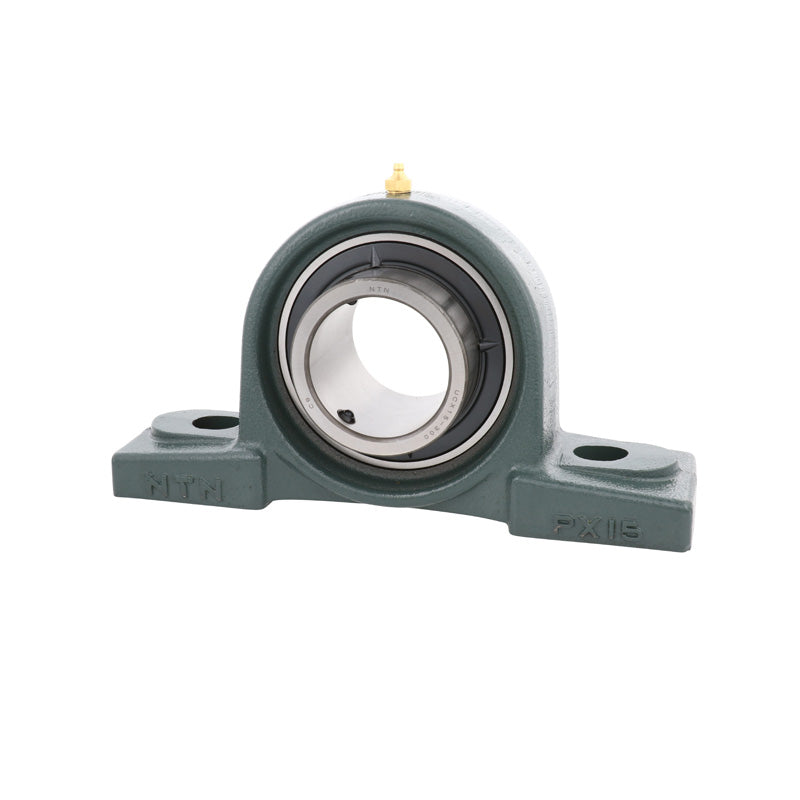

NTN UCPX20D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 100mm Bore Insert - Allow 2-3 Days
NTN UCPX20D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 100mm Bore Insert - Allow 2-3 Days
Regular price
€359,95
ex VAT
Regular price
Sale price
€359,95
ex VAT
In stock
Price Break
3+
€273,33
4+
€257,97
9+
€254,90
19+
€251,83
49+
€248,76
99+
€245,69
499+
€230,33
999+
€227,26
1999+
€224,19
2999+
€221,12
4999+
€214,98
Quantity
Couldn't load pickup availability
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Style:
- UCPX
- Bolt Hole Centres:
- 337mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 100mm |
| H | 127mm |
| L | 432mm |
| J | 337mm |
| A | 121mm |
| N | 33mm |
| N<sub>1</sub> | 36mm |
| H<sub>1</sub> | 45mm |
| H<sub>2</sub> | 244mm |
| L<sub>1</sub> | 125mm |
| B | 117.5mm |
| S | 49.2mm |
| Fixing bolt | M27 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 147 kN |
| Static load C<sub>0r</sub> | 105 kN |
| Fatigue load limit C<sub>u</sub> | 6.75 kN |
| --- | Unit information |
| Mass | 25 kg |
